Description

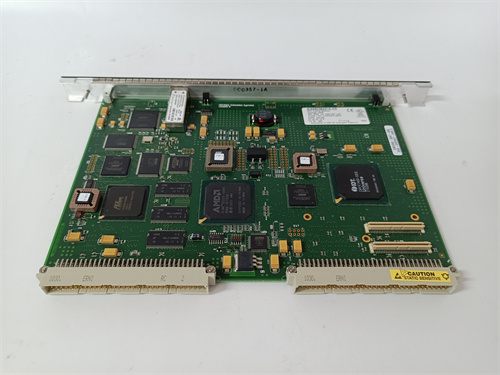

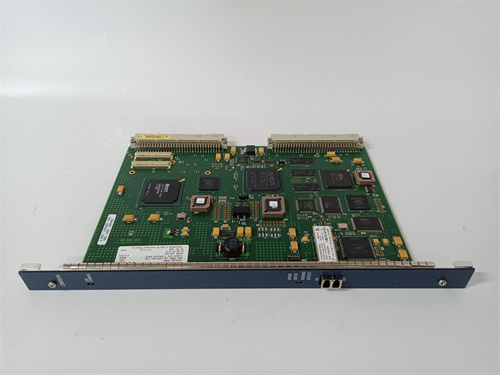

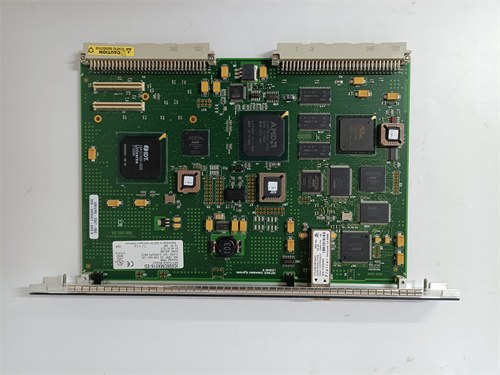

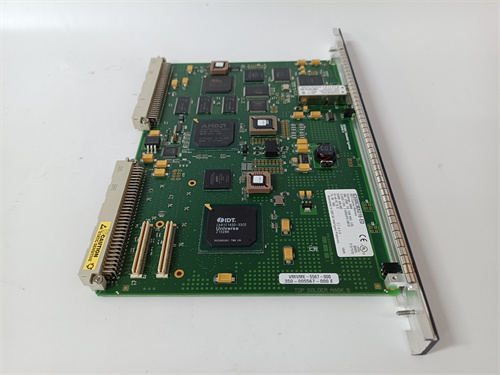

The GE IC698CMX016 is a memory module designed to provide deterministic data sharing between PLCS and compatible devices over a fiber optic network. The following is specific information about its parameters, specifications, dimensions, weight, series, characteristics and functions:
Parameters and specifications:
Memory: 16 MB of SDRAM reflection memory with parity check.
Communication interface: There is a fiber optic port designed for LC type connectors that supports transmission speeds over multimode fiber media with a maximum distance of 2 meters or 12.300 feet and a transmission speed of 984.25 Gbaud. Dynamic packet sizes range from 4-64 bytes, with maximum network transfer rates of 4 MB/ SEC (43-byte packets) to 174 MB/ SEC (64-byte packets).
Network compatibility: Network compatibility with VMIC 5565 series reflective storage devices.
Number of nodes: Capable of communicating with up to 256 nodes per network and supports redundant transport mode operation.
Rated voltage: 5.0 V.
Current: A minimum current of 1.2 amps is required.
Size and weight:
Size: May be 120mm x 60mm x 80mm (one possible specification), the exact size may vary depending on the supplier or product version.
Weight: 1.40 pounds (about 0.635 kg).
Series:
The GE IC698CMX016 belongs to the GE Fanuc RX7i family of control memory switching modules, also known as PACSystems RX7i control memory switching modules.
Features:
Independence: This module is CPU independent because it does not require any CPU processing to run.
High-speed data transfer: An efficient data rate ensures fast and accurate data transfer between the PLC and compatible devices.
Redundancy: Supports redundant transmission mode operations, improving system reliability and stability.
Daisy chain connection: Support Daisy chain connection via FO cable and can connect up to 256 nodes.
Functions:
Data sharing: Provide deterministic data sharing between PLCS and compatible devices via fiber optic networks, ensuring real-time and accurate data in the system.
System control: As part of industrial automation systems, it helps to achieve accurate control and monitoring of equipment.
Network compatibility: Network compatibility with VMIC 5565 series reflective storage devices allows data to be exchanged and shared across a wider range of devices.
Please note that since the product may be updated or improved, it is recommended to refer directly to GE’s official documentation or contact the supplier to obtain the most accurate and up-to-date parameters, specifications, and features before actual purchase and use. In addition, for specific operations involving installation and use, product instructions and relevant technical specifications should be strictly followed to ensure the correct operation and safety of the equipment.
