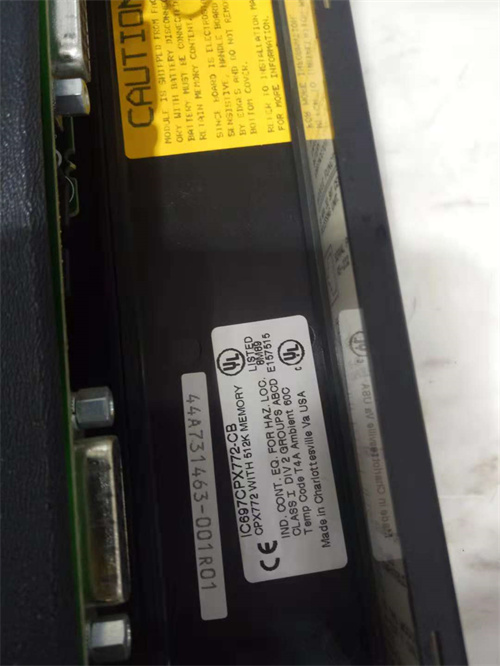

GE IC697CPX772

Description

Parameters:

• Processor: 80486DX4 microprocessor with a clock speed of 96 MHz¹.
• Boolean Processing Speed: 0.4 microseconds per instruction¹.
• Memory: 512 KB RAM (battery-backed) and 256 KB flash memory¹.
• Input/Output Capacity: Supports up to 2K discrete I/O and 8K words of analog I/O¹.

Specifications:

• Communication Interfaces: 1 RJ11 serial port and 2 9-pin D-shell RS485 communication interfaces¹.
• Protocols Supported: SNP Slave, Break-Free SNP (Slave), SNPX, and RTU serial protocols¹.
• Power Supply: 24VDC or 125VDC².
• Output Voltage: 24VDC².
• Maximum Output Current: 10A².
• Operating Temperature Range: 0-60°C (or -40°C to 70°C depending on source)¹².
• Sample Period: 100ms².

Dimensions and Weight:

• Size: 120mm x 60mm x 80mm².
• Weight: 0.5kg².

Series:

• Part of the Emerson Automation 90-70 series of Programmable Logic Controllers (PLC)¹.

Features:

• High Reliability: Designed for robust and reliable operation in industrial environments³.
• Floating-Point Calculation: Supports floating-point arithmetic, which is useful for real-world calculations and transactions¹.
• Multiple Communication Options: With RS232, RJ11, and RS485 interfaces¹.
• Real-Time Clock: Battery-powered with a precision of +/-3.5 seconds per day¹.
• Protection Features: Includes a MEM PROTECT LED to indicate when the memory protection switch is engaged¹.

Applications:

• Used in industrial automation systems for controlling and monitoring various processes and equipment¹³.
• Serves as the central processing unit (CPU) for PLC systems, handling logic, arithmetic, and communication tasks¹
