Description

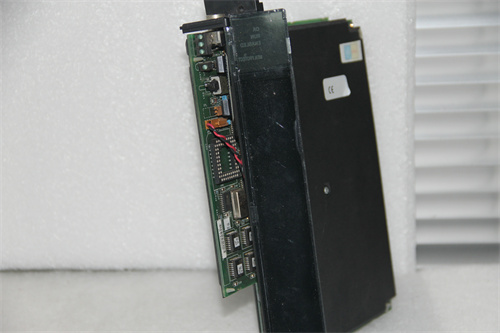

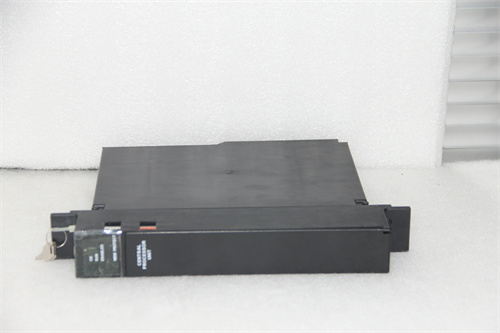

GE IC697CPM790 is a high-performance processor module from GE Fanuc, commonly used in industrial automation and control systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Processor: 64 MHz, 32-bit floating-point CPU
Memory: 1 MB of battery-backed memory
Voltage Range: 12-48VDC
Output Voltage: 5VDC
Output Current: Maximum of 10A
Efficiency: Greater than 90%
Operating Temperature: -20°C to +50°C
Storage Temperature: -40°C to +70°C
Environmental Humidity: 5% to 95% relative humidity (non-condensing)
Dimensions and Weight:
Dimensions: 170mm x 105mm x 32mm
Weight: Approximately 120g
Series:
IC697CPM790 belongs to the IC697 series of processors from GE Fanuc, which offers a range of high-performance CPUs for industrial control and automation applications.
Features:
High-Performance CPU: The 64 MHz, 32-bit floating-point CPU provides powerful processing capabilities for complex control and automation tasks.
Battery-Backed Memory: The module features 1 MB of battery-backed memory, ensuring data retention during power failures or system reboots.
Multiple Inputs and Outputs: It supports up to 12K discrete inputs and outputs, allowing for extensive control and monitoring capabilities.
Firmware Updates: The module allows for firmware updates via a serial port connection between the PC and the module, facilitating easy maintenance and upgrades.
Triple Module Redundancy (TMR): The module is designed for use with a separate C program that provides TMR operations and automatic test routines, enhancing system reliability.
Flexible Programming: It supports single-slot programming software, compatible with Windows or MS-DOS, for easy configuration and programming.
Functions:
Control and Automation: The IC697CPM790 serves as the brains of industrial control and automation systems, processing input signals, executing control logic, and generating output signals to control various devices and processes.
Data Acquisition and Processing: It acquires data from sensors and other devices, processes it, and makes decisions based on programmed logic to control system outputs.
Communication Interface: The module provides communication interfaces, such as RS-485 compatible serial ports, for data exchange with other devices or systems.
System Monitoring and Diagnostics: It monitors the status of the system and its components, generating alarms or notifications in case of any deviations or faults.
Applications:
The GE IC697CPM790 is widely used in various industrial automation and control applications, such as CNC machinery, metallurgy, oil and gas, printing, textile printing, mechanical manufacturing, electronic manufacturing, automotive manufacturing, tobacco processing, plastic machinery, power plants, water treatment/environmental protection, municipal engineering, steel mills, cement mills, robotics, and railway automation.
Note: The specifications, features, and applications mentioned above are general descriptions based on the provided references. It is always recommended to refer to the manufacturer’s official documentation for detailed and accurate information.
