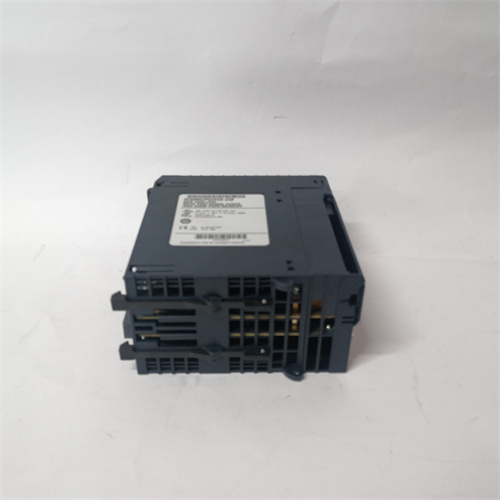

GE IC695CPU315

¥5,412.00

Parameters and Specifications

  • Processor: RX3i PacSystems 1.0 Gigahertz Celeron M CPU12
  • User Memory: 20 MB12
  • Discrete I/O Memory: 32 KB reserved12
  • Analog I/O Memory: 32 KB reserved12
  • Program Block Support: Up to 512 program blocks, each with a size of 128 KB12
  • Communication Ports: Two integrated serial ports, one supporting RS-232 communication and the other supporting RS-485 communication1
  • Serial Protocols: Supports serial I/O, Modbus RTU slave, and SNP protocols1
  • Current Consumption: 1.2 amps at 5V DC, 1 amp at 3.3V DC1
  • Operating Temperature Range: From 32°F to 140°F1
  • Internal Clock Accuracy: Maximum internal timing accuracy of 0.01%, with a rated peak drift of 2 seconds per day1
Category:

Description

ptr

Parameters and Specifications

  • Processor: RX3i PacSystems 1.0 Gigahertz Celeron M CPU12
  • User Memory: 20 MB12
  • Discrete I/O Memory: 32 KB reserved12
  • Analog I/O Memory: 32 KB reserved12
  • Program Block Support: Up to 512 program blocks, each with a size of 128 KB12
  • Communication Ports: Two integrated serial ports, one supporting RS-232 communication and the other supporting RS-485 communication1
  • Serial Protocols: Supports serial I/O, Modbus RTU slave, and SNP protocols1
  • Current Consumption: 1.2 amps at 5V DC, 1 amp at 3.3V DC1
  • Operating Temperature Range: From 32°F to 140°F1
  • Internal Clock Accuracy: Maximum internal timing accuracy of 0.01%, with a rated peak drift of 2 seconds per day1

Dimensions and Weight

  • The exact dimensions and weight are not readily available for the IC695CPU315 module.

Series

  • It belongs to the RX3i PacSystems series of industrial automation and control products from GE Fanuc.

Features

  • High Performance: Utilizes an Intel Celeron M processor for powerful computing and data processing capabilities123.
  • Large Memory Support: Supports large user memory and NVRAM for storing user programs, data, and system configurations123.
  • High-Speed Communication: Supports high-speed serial communication and RX3i PCU bus for fast and reliable data transmission123.
  • Flexible Programming: Supports multiple programming languages, including C, ladder logic, and structured text3.
  • Multiple Battery Options: Compatible with GEIP-approved auxiliary battery packs12.

Applications and Role

  • The IC695CPU315 is a servo drive module used in industrial automation and control systems for driving and controlling various applications4. It is commonly used in areas such as:
    • Industrial Machinery: Driving and controlling mechanical motions in machines like lathes, packaging machines, and conveyors4.
    • Automated Production Lines: Driving and controlling actuators like conveyor belts, robotic arms, and lifts4.
    • Robotics: Driving and controlling robotic joint movements and end effectors4.
    • Chemical and Process Control: Driving and controlling valves, pumps, and actuators for precise flow, pressure, and temperature control4.
    • Precision Instrumentation: Driving and controlling motion components in precision instruments for tasks like focus adjustment and platform movement4.
    • Laboratory Research: Driving and controlling motion components in experimental equipment for automation and precise control of experiments4.
