Description

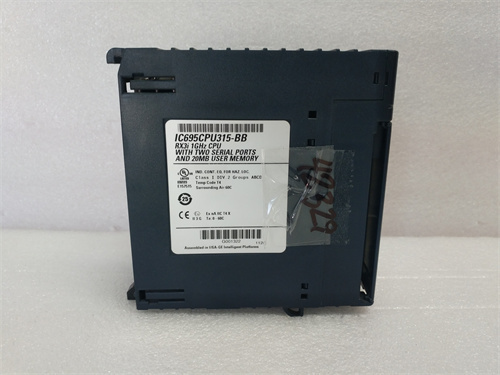

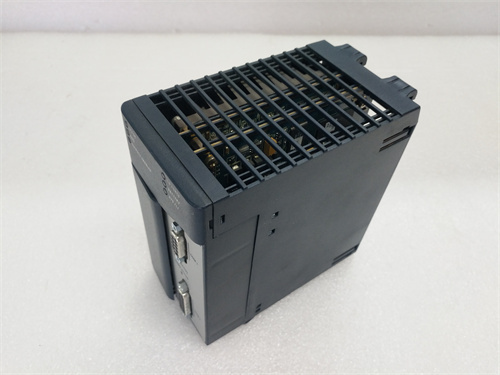

GE IC695CPU315 is a central processing unit (CPU) module designed for industrial automation and control systems. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Model Number: IC695CPU315.
Brand: GE Fanuc.
Clock Speed: 1.0 gigahertz (GHz).
User Memory: 20 MB.
Program Blocks: Supports up to 512 program blocks, each with a size of 128 KB.
I/O Memory: Reserves 32 Kbits for discrete I/O and 32 Kwords for analog I/O.
Power Consumption: At 5 VDC, the rated current consumption is 1.2 amperes; at 3.3 VDC, it is 1 ampere.
Operating Temperature Range: From 32°F to 140°F.
Internal Clock Accuracy: Maximum internal timing precision of 0.01%; internal clock’s rated peak drift is 2 seconds per day.
Dimensions and Weight:
Dimensions: Not specifically mentioned in the provided references.
Weight: Not specifically mentioned in the provided references.
Series:
It belongs to the GE Fanuc RX3i PacSystems 1.0 series.
Features:
Communication Ports: Provides two integrated serial ports, one supporting RS-232 communication and the other supporting RS-485 communication.
Serial Protocols: Supports three serial protocols: serial I/O, Modbus RTU slave, and SNP protocol.
Processor Compatibility: Meets PCI standards 2.2 version.
Memory Types: Includes battery-powered RAM and 20 MB of NVRAM.
Power Supply Options: Compatible with a range of batteries, including IC695ACC302 intelligent auxiliary battery, IC693ACC302 standard auxiliary battery, and IC690RBT001 charging battery.
Programmable Logic: Supports most GE Series 90-30 modules and expansion racks, and allows for field upgrades of the CPU firmware.
Conformity and Certifications: Complies with the EU RoHS directive 2002/95/EC.
Role/Function:
The GE IC695CPU315 is designed for use in industrial automation systems, controlling applications and machines in real-time.
It serves as the central brain of the system, managing data flow, executing control logic, and communicating with other components and devices.
It finds applications in various industries, including industrial automation, manufacturing, power systems, process control, building automation, transportation systems, environmental monitoring, and medical equipment.
Please note that while the above information provides a general overview of the GE IC695CPU315, specific details such as exact dimensions and weight may vary based on manufacturer updates or regional variants. It is recommended to consult the official GE documentation or contact a GE representative for the most accurate and up-to-date specifications.
