Description

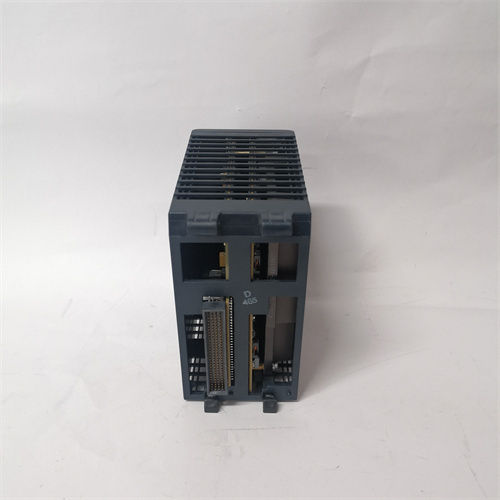

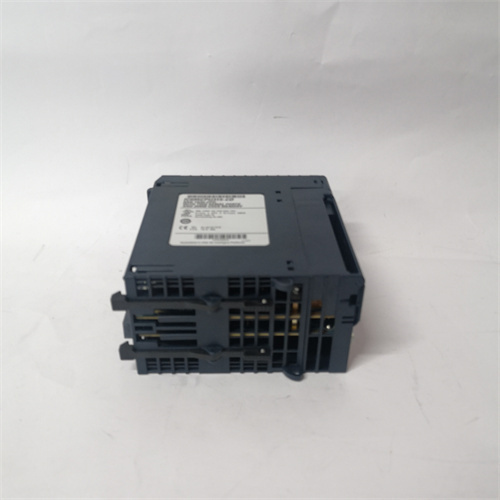

GE IC695CPU315 is a high-performance central processing unit (CPU) module used in industrial automation and control systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Brand: GE Fanuc
Model: IC695CPU315
Type: Central Processing Unit (CPU) Module
Processor Speed: 1 GHz (Gigahertz)
Memory: 20 MB of user memory
Additional Memory: 20 MB of NVRAM
Program Block Support: Supports up to 512 program blocks, with each block sized at 128 KB
Communication Ports: Features two integrated serial ports; one supporting RS-232 communication and the other RS-485 communication
Serial Protocols: Supports serial I/O, Modbus RTU slave, and SNP protocols
Power Consumption: At 5V DC, it consumes 1.2 amps; at 3.3V DC, it consumes 1 amp
Operating Temperature: Ranges from 32°F to 140°F
Clock Accuracy: Internal clock has a peak drift of 2 seconds per day and a maximum internal timing accuracy of 0.01%
Applications: Used for real-time control and processing of applications
Dimensions and Weight:
Dimensions: Not specifically mentioned, but typically a compact module for easy installation
Weight: 1.26 KG
Series:
The IC695CPU315 belongs to the RX3i PacSystems series of CPU modules from GE Fanuc.
Features:
High Performance: With a 1 GHz processor speed, it offers excellent processing capabilities for complex industrial applications.
Large Memory Capacity: Provides 20 MB of user memory and 20 MB of NVRAM for storing programs, data, and system configurations.
Versatile Communications: Features two integrated serial ports, supporting multiple serial protocols for flexible communication with other devices and systems.
Multiple Program Blocks: Supports up to 512 program blocks, allowing for complex control logic and automation tasks.
Real-Time Operations: Ideal for applications that require real-time control and monitoring.
Compatibility: Compatible with most GE Series 90-30 modules and expansion racks.
Modular Design:Allows for easy upgrading and expansion of system capabilities.
Power Management: Features power management functions, including power fault detection and alarm functions, for monitoring power status and ensuring system reliability.
Hot-Swappable: Supports hot-swapping, enabling module replacement or maintenance without system shutdown or restart.
Hardware Protection: Incorporates various hardware protection mechanisms, such as overcurrent, overheat, and short-circuit protection, to safeguard system operation.
Applications:
The GE IC695CPU315 is widely used in various industrial automation and control applications. These include, but are not limited to:
Industrial Automation: Control of production lines, machinery, and process control systems.
Manufacturing: Use in mechanical manufacturing, production process control, and other manufacturing scenarios.
Power Systems: Application in power distribution, power plant control, and other power-related systems.
Process Control: Utilized in chemical, oil, and gas industries for controlling and regulating various production processes.
Building Automation: Controls building systems such as lighting, air conditioning, and security systems.
Transportation Systems: Used in controlling traffic signals, railway systems, and intelligent transportation management systems.
Environmental Monitoring: Applied in environmental monitoring systems for controlling and monitoring waste treatment, air quality monitoring, and other environmental applications.
Medical Equipment: Controls actuators and operational elements in medical equipment.
Please note that specifications, features, and applications may vary slightly depending on the specific model and its configuration. It’s always advisable to refer to the manufacturer’s official documentation or contact a sales representative for the most accurate and up-to-date information.
