Description

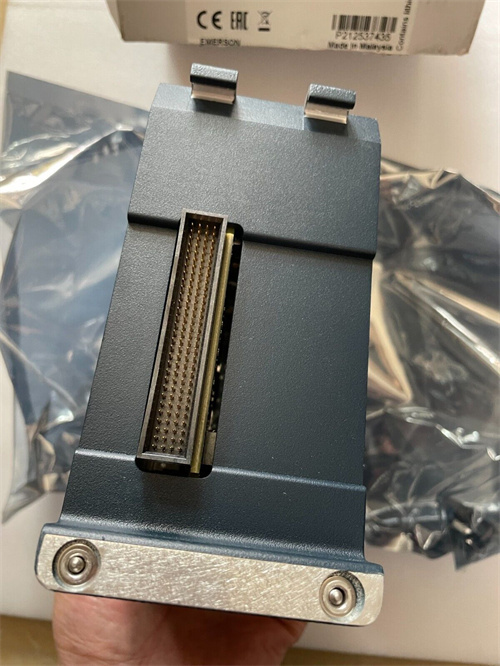

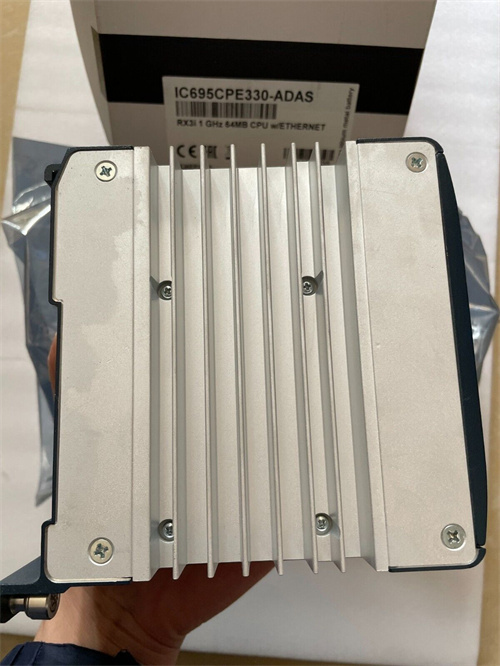

The GE IC695CPE330 is a highly specialized controller module from the PACSystem RX3i automation platform. Here is a detailed breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Memory: The controller features 64MB of user memory and an additional 64MB of non-volatile user memory.
Processor Speed: It boasts a processor speed of 1 GHz.
Ethernet Ports: The controller is equipped with two independent 10/100/1000 Gbps Ethernet ports and a USB master port, offering embedded switch capabilities through LAN 2 connection.
Redundancy Support: It supports redundancy configurations with PROFINET controllers, Ethernet (EGD), and Genius IO.
Dimensions and Weight:
Dimensions: The controller measures 170mm in length, 125mm in width, and 166mm in height. Additionally, some sources indicate a size of 23cm, which is approximately equivalent to the previous measurement.
Weight: The weight of the IC695CPE330 is 0.2kg.
Series:
The GE IC695CPE330 belongs to the RX3i series of controllers from GE Fanuc / Emerson Automation.
Features:
Programmable: It is programmable, allowing users to customize control programs using appropriate programming software.
Communication Interfaces: It supports various communication interfaces for seamless integration with other PLC modules, external devices, or upper-level control systems.
Real-time Monitoring: Real-time monitoring capabilities enable users to view the PLC system’s status, variables, and alarm information.
Redundancy and Availability: The embedded Ethernet communication ports enhance controller and media redundancy, improving the availability of I/O modules.
Multiple Programming Languages: The controller supports programming languages such as Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), or C language.
OPC UA Communication: It supports communication with third-party devices through OPC UA, an industry standard for Ethernet IP connections.
Multiple IO Protocols: IC695CPE330 supports various IO protocols including PROFINET, EGD, Modbus TCP, PROFIBUS, Genius, DeviceNet, Modbus RTU, and Reflected Memory (CMX) protocol.
Functions/Applications:
The GE IC695CPE330 is typically used in programmable logic controller (PLC) systems for automation and control in various industrial applications.
It executes control logic and programs within the PLC system, processing input and output signals, executing user-defined logic, and communicating with other modules.
Due to its enhanced features and capabilities, it is suitable for meeting modern application requirements and emerging technologies.
