Description

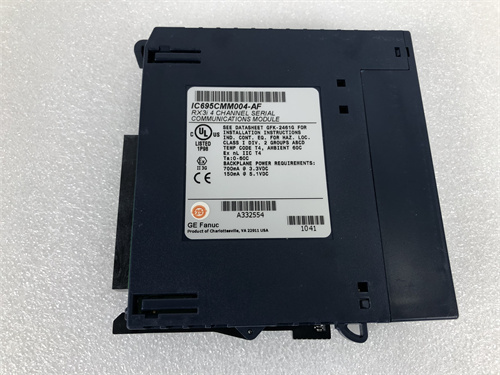

GE IC695CMM004 is a serial communication module, the specific parameters, specifications, dimensions, weight, series, features and functions are as follows:
argument
Communication protocol: Support Modbus slave station, Modbus master station or serial I/O port. For certain versions, CCM slave ports and DNP3 master or slave ports are also supported.
Number of ports: There are eight independent and isolated serial ports on the module.
Baud rate range: from 1200 to 115.2 thousand baud.
specification
Size: 20.6cm×19.6cm.
Power requirements: 0.7 amps at 3.3 volts DC, 0.15 amps at 5 volts DC.
Size and weight
Size: 20.6cm×19.6cm.
Weight: Specific weight information is not explicitly mentioned in the search results provided.
series
The IC695CMM004 is part of GE Fanuc’s RX3i PACSystems family.
trait
Software configurable: Support RS-232, RS-485 and RS-422 serial communication.
Fault status report: Provides the fault status report function.
Port isolation: Port to backplane isolation is 250V AC continuously, port to port isolation is 500V DC continuously and 710V DC continuously for 1 minute.
Firmware upgradable: Has upgradable firmware.
Working environment: The operating temperature range is 0 to 60 degrees Celsius.
effect
The main role of the GE IC695CMM004 is as a serial communication module for serial communication in industrial automation and control systems. It can be configured for a variety of different communication modes, such as Modbus slave station, master station, etc., supports a variety of different baud rates, and provides communication capabilities through multiple independent and isolated ports. This makes it a very flexible and powerful communication solution.
