Description

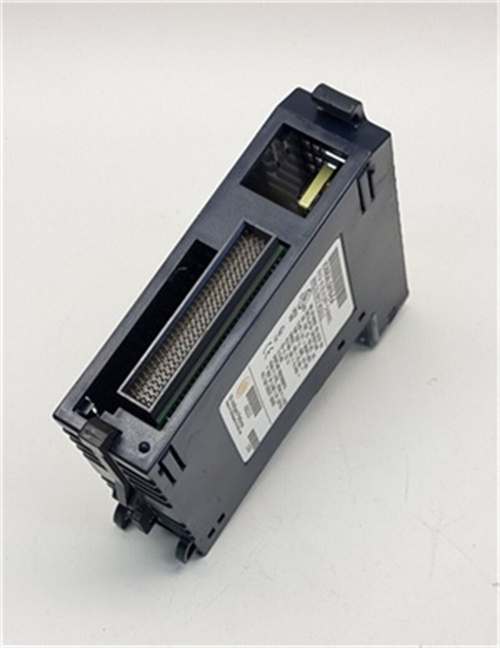

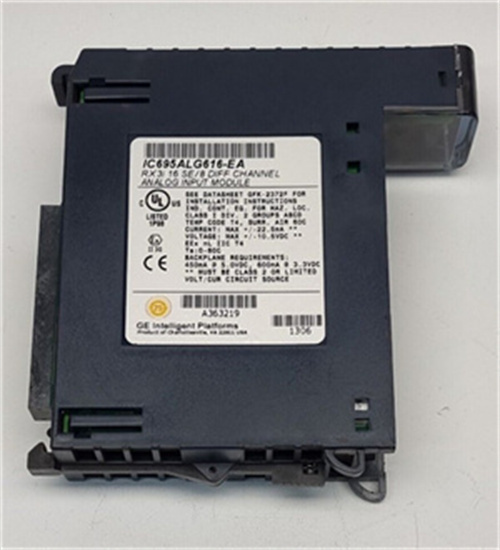

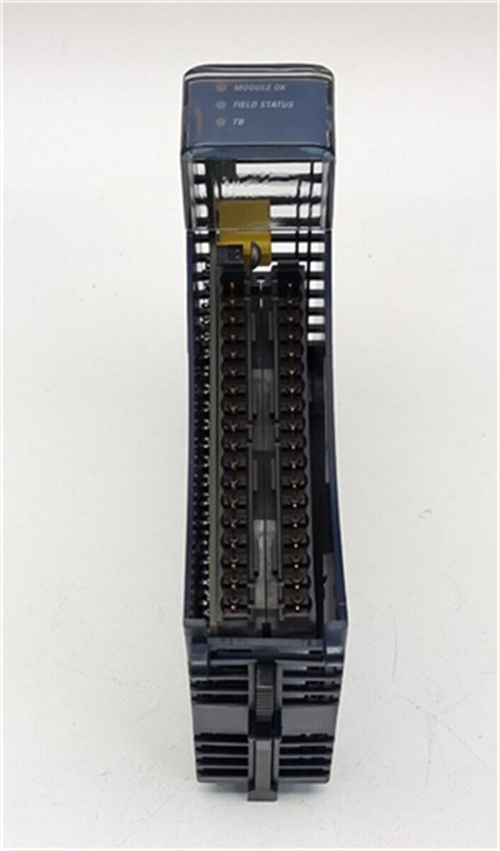

GE IC695ALG616 is an analog input module, the specific parameters, specifications, dimensions, weight, series, features and functions are as follows:
argument
Input channels: Compatible with wires with analog current and voltage signals. Accepted current signals include 0 to 20mA, 4 to 20mA, ±20mA, and voltage signals of ±10V, 0 to 10V, ±5V, 0 to 5V, and 1 to 5V.
Data saving: Converted analog data is saved as floating point 16-bit IEEE data or 32-bit integers using 32-bit registers.
Operating environment: Operating temperature range is -20°C to +50°C, storage temperature range is -40°C to +70°C.
specification
Dimensions: 170mm x 105mm x 32mm.
Weight: About 120g.
Size and weight
Dimensions: 170mm x 105mm x 32mm.
Weight: About 120g.
series
PACSystem RX3i Series: As GE Fanuc’s non-isolated differential analog input module, it belongs to the PACSystem RX3i Programmable Automation Controller (PAC) family.
trait
Compatibility: The module’s input channels are compatible with wires with analog current and voltage signals.
Channel filters: Each channel has a configurable channel filter to stabilize and minimize fluctuations.
Automatic calibration: The module is capable of performing automatic calibration during each startup.
Protection function: Embedded module protection includes open circuit detection, overvoltage and overcurrent protection.
Alarm function: Each channel can be individually configured with alarm Settings, such as extremely low, low, high and extremely high alarms. The positive and negative rate of change can also be included in the alarm function.
Communication: The module’s parameters are configured using Proficy Machine Edition (PME) programming software without the need for a jumper and DIP switch to indicate the module’s operation.
effect
GE IC695ALG616 is mainly used in industrial automation and control systems, as an analog input module, which is responsible for receiving and processing analog signals from sensors or actuators, such as current and voltage signals, and converting these signals into digital data for control systems to analyze and process. Its high precision and reliability make it a key component in industrial automation.
