Description

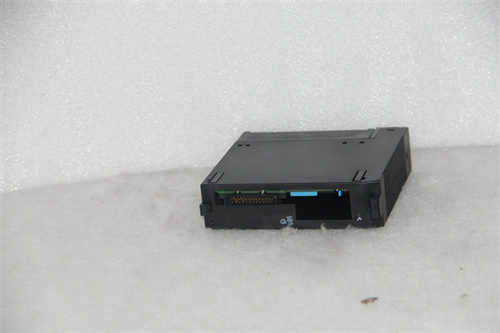

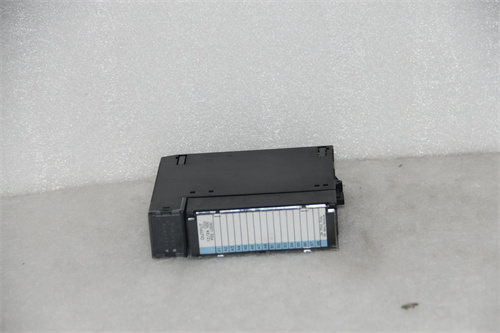

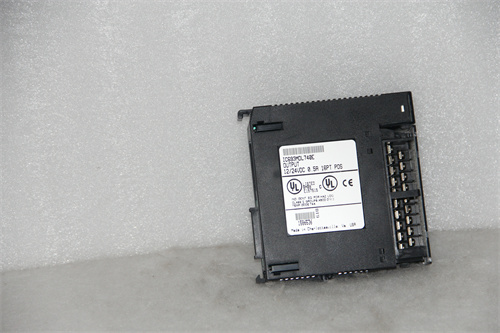

The GE IC693MDL740 is a digital input/output module designed for industrial automation systems, specifically for use with GE’s 90-30 series Programmable Logic Controllers (PLCs). Here is a summary of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Type: IC693MDL740 is a digital input/output module for the 90-30 series PLCs.
Input/Output Channels: The module has 16 source output channels, with a capacity of 0.5 amps per channel.
Operating Voltage: The module’s operating voltage range is from 12 to 24 volts DC (with a 20% tolerance and a -15% under-voltage lockout).
Power Supply: It has an internal 24V DC power supply that is protected against short circuits and overloads.
Surge Current: The module can handle a surge current of up to 4.78 amps for 10 ms.
Output Characteristics: Maximum output voltage drop is 1 VDC, non-steady-state leakage current is 1 mA, ON response time is 2 ms, and maximum OFF response time is also 2 ms.
Power Consumption: The module consumes 110 mA when all outputs are activated.
Dimensions:
The IC693MDL740 module has dimensions of 166mm x 112mm x 36mm.
Weight:
The exact weight of the IC693MDL740 module may vary depending on the manufacturer and specific model. However, it is typically lightweight and suitable for rack-mounting in industrial control cabinets.
Series:
The IC693MDL740 belongs to the 90-30 series of PLC modules.
Features:
Positive Logic Output: The module provides a positive logic output.
LED Indicators: The module has LED indicators that display the status of the circuits.
Structured Design: It has a hinged door that allows the placement of a plug-in between the inner and outer surfaces.
Circuit Information: The hinged door’s inner surface contains wiring information, while the outer surface has circuit identification information.
Applications:
The GE IC693MDL740 module is used in industrial automation systems for digital input/output operations. It interfaces with various sensors, actuators, and other digital devices, allowing the PLC to monitor and control these devices effectively.
