Description
Parameters and Specifications:
- Type: Digital Input/Output Module
- Voltage: Rated voltage of 12-24VDC for positive logic
- On-state Voltage Drop: 0.3 V DC
- Switch Response Time: Maximum of 0.5 milliseconds
- Output Channels: 32 output points, grouped into 4 groups of 8 each
- Surge Current: 5.4 amperes for 10 milliseconds
- Output Current: 0.5 amperes per point, 4 amperes per group, 3 amperes maximum for common pin per group
- Communication: Supports exchange of I/O messages and custom explicit messages with up to 63 other devices on the network
Series:
- Part of the GE Fanuc Series 90-30 PLC System
Features:
- Compact Design: Suitable for space-limited applications
- Flexible I/O Configuration: Supports digital input/output, analog input/output, and other I/O modules
- Multiple Communication Interfaces: Supports serial, Ethernet, and other interfaces for data exchange and communication
- Easy-to-use Programming Environment: Compatible with GE Fanuc PLC programming software such as Proficy Machine Edition or Logic Developer-PLC
- Electrical Isolation: Between channels for improved system reliability and safety
- Output Frequency Stability: Provides stable and reliable operation
- Wide Operating Temperature Range: Suits a variety of industrial environments
Role and Applications:

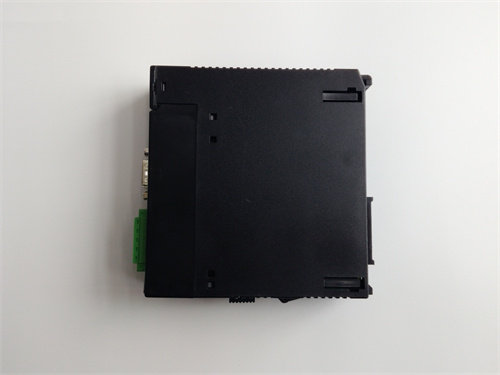

- The GE IC693DNM200 is a digital input/output module designed for use with the GE Fanuc Series 90-30 PLC system
- It handles digital signals, such as those from sensors and switches, and provides outputs to control external devices like relays and actuators
- Widely used in industrial automation systems for applications like manufacturing, process control, and machine control
