GE IC693DNM200

Description

Parameters (参数):

• Rated Voltage: 12-24VDC positive logic¹
• On-state Voltage Drop: 0.3 V DC¹
• Switching Response Time: Maximum of 0.5 milliseconds¹
• Output Channels: 32 output points, 4 per group, 8 groups total¹
• Output Current: 0.5A per point, 4A per group, 3A maximum per group common pin¹
• Surge Current: 5.4A for 10ms¹

Specifications (规格):

• DeviceNet Capability: Supports up to 63 other devices for I/O messaging and custom explicit messaging¹
• Data Transmission Rates: Supports all DeviceNet protocol data rates, especially 125K, 250K, and 500K²
• Max. Data Transmission: 255 bytes input and 255 bytes output per slave device, up to 3972 bytes input and 3972 bytes output to the master module²
• Max. I/O Connections: 126 total, able to communicate with up to 63 slave devices with up to 2 I/O stations per slave

Series (系列):

• GE Fanuc Series 90-30 Programmable Logic Controller (PLC) Platform¹²
• Now part of Emerson Automation²

Features (特征):

• Communication Interface: Single DeviceNet terminal, RS232 9-pin D-shell female port for module service²
• Connection: Two 20-pin connectors for connecting input signals and power³
• LED Indicators: For indicating input status of each channel³
• Electrical Isolation: Between channels for improved system reliability and safety³
• Programmable Environment: Compatible with GE Fanuc PLC programming software such as Proficy Machine Edition or Logic Developer-PLC

Role (作用):

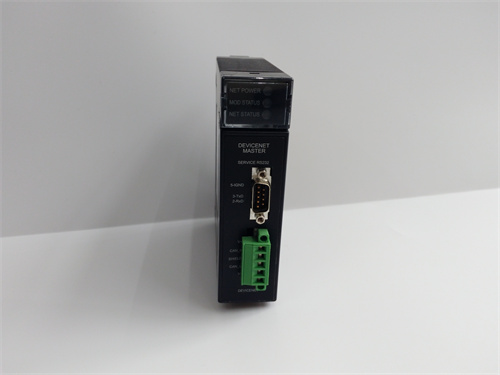

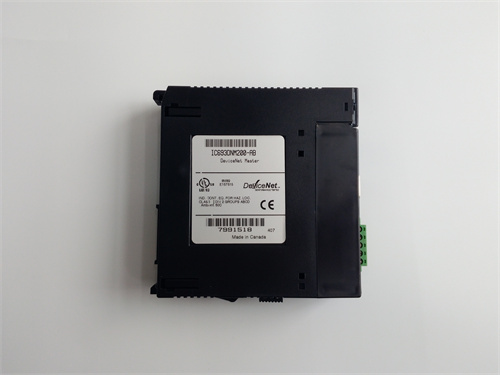

• GE IC693DNM200 is a DeviceNet master module designed for the GE Fanuc Series 90-30 PLC platform¹².
• It serves as the communication hub between the PLC and other DeviceNet devices, enabling data exchange and control².
• Widely used in industrial automation applications for monitoring and controlling digital signals⁴
