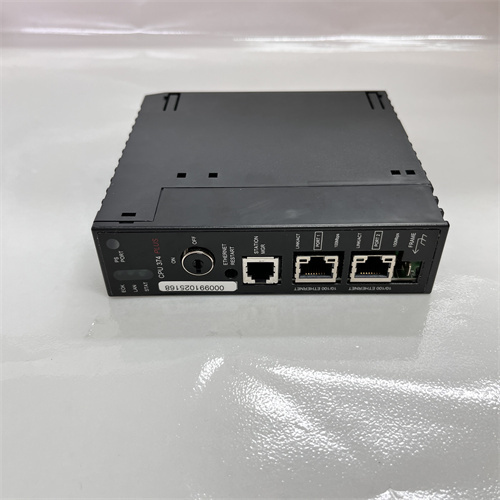

GE IC693CPU374

¥6,235.00

Parameters and Specifications:

  • Manufacturer: GE Fanuc
  • Product Number: IC693CPU374
  • CPU Type: Single-slot CPU module with embedded Ethernet interface
  • Processor Speed: 133 MHz
  • Processor Type: Embedded 5861
  • Typical Scan Rate: 0.15 ms per 1K logic (Boolean contacts)1
  • Storage Type: RAM and Flash
  • User Memory (Total): 240 KB12
  • Protocol Support: SNP and SNPX on RS-485 port, SRTP, Ethernet Global Data (EGD), Modbus/TCP client/server12
  • Ethernet Communication: Built-in 10/100 base-T/TX Ethernet switch, two auto-sensing 10/100 baseT/TX ports1
  • IP Address Count: One1
  • Operating Temperature: 0 to 60°C (32 to 140°F)12
Category:

Description

Parameters and Specifications:

  • Manufacturer: GE Fanuc
  • Product Number: IC693CPU374
  • CPU Type: Single-slot CPU module with embedded Ethernet interface
  • Processor Speed: 133 MHz
  • Processor Type: Embedded 5861
  • Typical Scan Rate: 0.15 ms per 1K logic (Boolean contacts)1
  • Storage Type: RAM and Flash
  • User Memory (Total): 240 KB12
  • Protocol Support: SNP and SNPX on RS-485 port, SRTP, Ethernet Global Data (EGD), Modbus/TCP client/server12
  • Ethernet Communication: Built-in 10/100 base-T/TX Ethernet switch, two auto-sensing 10/100 baseT/TX ports1
  • IP Address Count: One1
  • Operating Temperature: 0 to 60°C (32 to 140°F)12
  • Storage Temperature: -40°C to +85°C12
  • Agency Approvals: UL508, C-UL (Class I, Division 2, Groups A, B, C, D), CE Mark1
  • Input Voltage Range: 100-240 VAC3
  • Power Output: 360W3

Dimensions and Weight:

  • Weight: 1.81 kg (transport weight: 3 kg)1
  • Dimensions: Not specifically mentioned, but it is a part of GE’s Series 90-30 series PLC1

Series:

  • GE Series 90-30 series programmable logic controller (PLC)12

Features:

  • Embedded Ethernet Controller: Supports up to 100 Mbps communication speed with built-in switch2
  • Memory: 240 KB user-configurable memory2
  • I/O and Racks: 4K I/O and 8 racks2
  • Registers: Configurable from 128 to 32,640 words2
  • Timers and Counters: 28 fixed system registers with timers and counters2
  • Battery Backup: For system clock and RAM2
  • Programmability: Supports different programming languages and can process floating-point data2
  • Configuration Software: Compatible with VersaPro or CIMPLICITY machine edition logic software

Role and Application:

  • IC693CPU374 is a high-performance central processor module designed for industrial control and automation applications4.
  • It is used to control and monitor various devices and processes in industries such as manufacturing, automation lines, process control, water treatment, and power generation4.
  • Supports modular and programmable control systems for fast response to real-time applications4.
  • Provides high reliability and stability for operation in harsh industrial environments4.
  • Can be used with various input/output modules to connect and monitor sensors, actuators, and other devices
