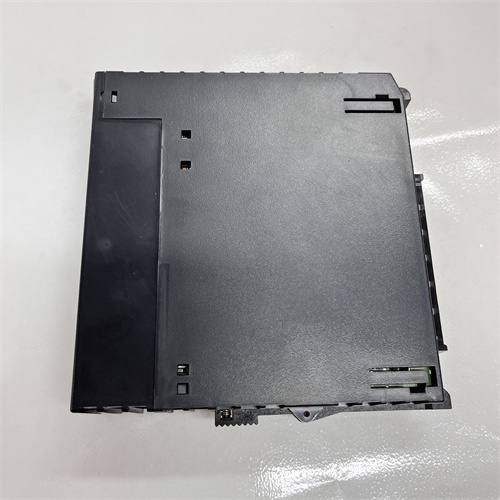

GE IC693CPU374

Description

Parameters and Specifications:

• Manufacturer: GE Fanuc
• Product Number: IC693CPU374
• CPU Type: Single-slot CPU module with embedded Ethernet interface
• Processor Speed: 133 MHz
• Processor Type: Embedded 586
• Typical Scan Rate: 0.15 ms per 1K logic (Boolean contacts)
• Storage Type: RAM and Flash
• User Memory (Total): 240KB
• Protocols Supported: SNP and SNPX on RS-485 port, SRTP, and Ethernet Global Data (EGD)
• Built-in Ethernet Communication: Ethernet (built-in) – 10/100 base-T/TX Ethernet switch
• Ethernet Port Count: Two, with auto-sensing 10/100 baseT/TX ports
• IP Address Count: One
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40°C to +85°C
• Agency Certifications: UL508, C-UL (Class I, Division 2, Groups A, B, C, D), CE Mark¹

Dimensions and Weight:

• Dimensions: Not explicitly stated in the search results.
• Weight: 1.81 kg (transport weight: 3 kg)¹

Series:

• GE Series 90-30 series programmable logic controller (PLC)¹

Features:

• High-speed Processing: 133 MHz processor for fast execution of control logic and operations¹²
• Communication: Embedded Ethernet controller supporting up to 100 Mbps communication speed with two auto-sensing 10/100 baseT/TX ports²
• Memory: 240 KB user-configurable memory²
• I/O Capacity: 4K I/O and 8 racks²
• Protocol Support: SRTP, Ethernet Global Data, and Modbus/TCP client/server protocols²
• Expansion Options: CPU comes with a CPU baseplate and supports 7 expansion or remote baseplates²
• Power: 7.4 watts, powered by 5V DC²
• Programming: Supports different programming languages and can handle floating-point data. Configurable using VersaPro or CIMPLICITY machine edition logic software²
• Registers: 1280-bit discrete global storage capacity. Register memory can be configured from 128 to 32,640 words²
• System Registers: 28 fixed system registers with timers and counters²
• Battery Backup: Battery-powered for system clock and RAM²

Role and Function:

GE IC693CPU374 is a single-slot CPU module for industrial automation and control systems. It is designed to execute user-written control logic and operations. It provides high-speed processing, communication capabilities, and expandable memory options. It is a part of the GE Series 90-30 PLC system and supports various protocols for communication with other devices and systems¹².
