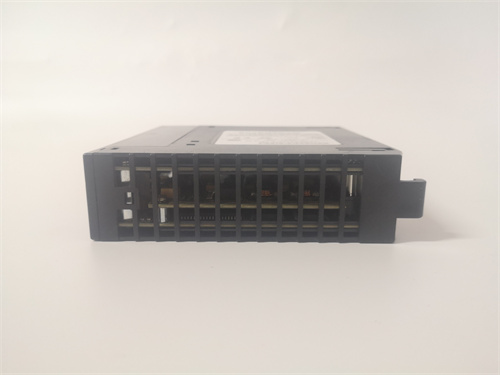

GE IC693CPU372

Description

Parameters:

• Processor: AMD SC520, Clock Speed 133MHz¹²³
• User Program Memory: 240 Kbytes¹²³
• Input/Output Capacity:
  • Discrete Inputs: 2048
  • Discrete Outputs: 2048
  • Analog Input Words (Max): 32,640
  • Analog Output Words (Max): 32,640¹²³

Specifications:

• Ethernet Interfaces: 2 (RJ45 ports), supporting 10/100 Mbps transmission speed¹²³⁴
• Protocols Supported: TCP/IP, Modbus TCP/IP¹²³⁴
• Operating Temperature Range: -40°C to 85°C⁴
• Storage Temperature Range: -55°C to 125°C⁴
• Humidity: 5% to 95% (non-condensing)⁴
• Protection Class: IP67⁴
• Dimensions: 133 mm x 42 mm x 3 mm⁴
• Weight: 0.01 kg²
• Power Supply: 24 VDC, Max Power Consumption 4 W⁴

Series:

• 90-30 Series PLC Module²³⁴

Features:

• Modular Design: Single-slot modular CPU¹³⁶
• High-speed Communication: Dual Ethernet ports with 10/100 Mbps speed¹²³⁶
• Internal Switch: Shares IP address and allows daisy-chain networking (Device-Level Ring) topology¹³⁶
• Auto-sensing: Each port supports auto-sensing, no need to manually configure for network speed¹²³
• PLC Programming: Supports complete PLC programming and configuration services using Proficy Machine Edition software¹²³
• Compatibility: Compatible with GE PLC devices from 90-30 or VersaMax series, as well as PACSystems PLC devices

Applications:

• Industrial Communication: Used as an Ethernet communication interface for industrial Ethernet networks running TCP/IP protocols¹²³⁴
• Data Exchange: Enables regular data exchange using Ethernet Global Data (EGD), SRTP, and SRTP clients¹³⁶
• Control and Monitoring: Supports remote configuration, monitoring, and maintenance of PLC systems
