Description
The GE IC693CPU372 is a high-performance TCP/IP Ethernet communication interface module specifically designed for industrial automation applications. Here are its key parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Communication Protocols: Supports TCP/IP and Modbus TCP, enabling seamless data exchange with various devices.
Transmission Rate: Operates at 10/100 Mbps on Ethernet interfaces.

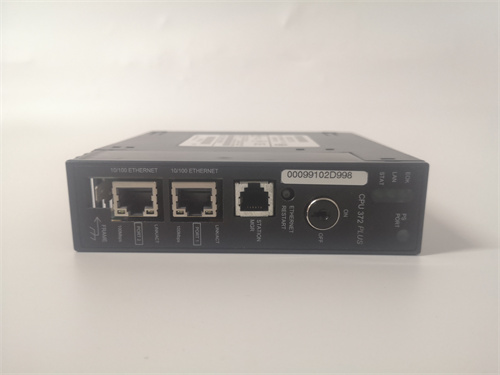

Ethernet Interfaces: Equipped with 2 RJ45 ports, allowing for dual Ethernet connectivity.
Operating Temperature Range: -40°C to 85°C, suitable for harsh industrial environments.
Storage Temperature Range: -55°C to 125°C.
Humidity: 5% to 95% (non-condensing).
Isolation Voltage: 250 V RMS.
Power Supply: 24 VDC, with a maximum power consumption of 4 W.
Input/Output Capability: Supports up to 2048 discrete inputs and outputs, as well as a range of analog input and output words.
Memory: Equipped with RAM-type internal memory, backed up by a battery, with optional non-volatile memory for data retention.
Dimensions and Weight:
Dimensions: Approximate size may vary, but one source lists it as 133 mm x 42 mm x 3 mm. Another source lists it as 5.50×5.50×1.50.
Weight: Approximately 0.01 kg. Another source lists it as 0.95 pounds (approximately 0.43 kg). Please note that the weight may vary depending on the specific configuration and accessories.
Series:
The IC693CPU372 belongs to the GE Fanuc 90-30 series of PLC modules.
Features:
High Performance and Reliability: Designed for robust and reliable operation in industrial environments.
Integrated Ethernet Connectivity: Provides seamless integration with Ethernet-based systems and devices.
PLC Programming and Configuration: Supports complete PLC programming and configuration services, facilitating easy setup and customization.
Dual Ethernet Ports: Allows for shared IP addresses and internal Ethernet switching, enabling networking and device-level ring topologies.
Automatic Network Sensing: Each port supports network auto-sensing, eliminating the need to manually configure the module based on network speed.
Web Server for Remote Configuration: The built-in web server enables remote connection and configuration, simplifying module setup and monitoring.
Role/Functions:
Ethernet Communication: The IC693CPU372 serves as the primary interface for Ethernet communication within industrial automation systems, enabling data exchange and control.
PLC Control and Logic: As part of a PLC system, it executes control logic and manages input/output signals, controlling industrial processes and equipment.
System Integration: The module integrates with other devices and systems, facilitating seamless operation and coordination within the overall automation system.
Compatibility: The IC693CPU372 is compatible with the 90-30 series or VersaMax series of GE PLC devices, as well as PACSystems, ensuring broad application coverage.
