Description

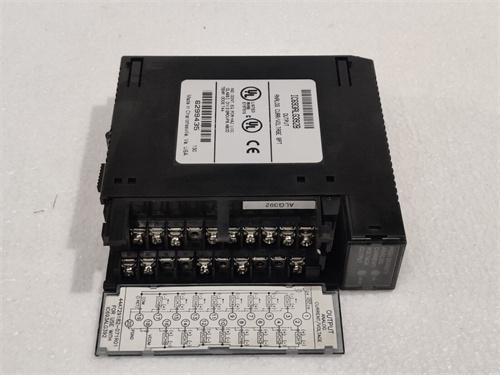

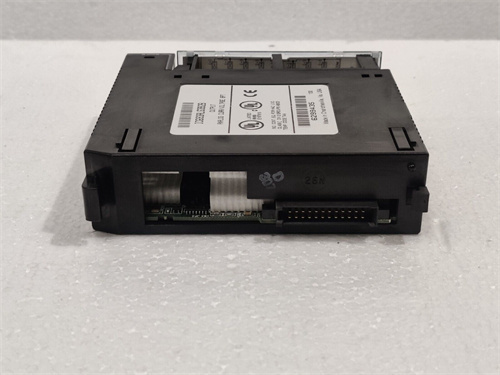

The GE IC693ALG392 is a high-performance analog output module designed for use in industrial automation systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Module Type: Analog current/voltage output module.
Output Ranges: Supports 4 to 20 mA or 0 to 20 mA output current ranges, as well as 0 to 10 VDC and -10 to 10 VDC output voltage ranges.
Resolution: Configurable for 15 or 16 bits depending on the selected analog output range.
Update Rate: Each channel has an update rate of 8 milliseconds.
Calibration: Factory calibrated with precise voltage and current outputs.
Dimensions and Weight:
Dimensions: Exact dimensions may vary, but it is typical for modules in this series to have a compact form factor suitable for rack-mounting in control systems.
Weight: The weight is approximately 3.00 lbs (1.36 kg).
Series:
The GE IC693ALG392 belongs to the 90-30 series of modules. It is also compatible with the PACSystems RX3i system.
Features:
Multiple Output Channels: Has eight single-ended output channels.
Flexible Configuration: Each channel can be configured for a variety of output ranges, such as 0 to 10 VDC, -10 to 10 VDC, 0 to 20 mA, or 4 to 20 mA.
Accuracy: High accuracy due to precise calibration and resolution settings.
Fault Detection: Can report open-circuit faults for each channel in the current mode.
Power Supply: Requires an isolated 24VDC power supply for generating analog output signals.
Applications:
The GE IC693ALG392 analog output module is typically used in industrial automation systems to control and monitor analog processes. It can be integrated into PLCs, DCS systems, and other industrial control systems to provide precise analog output signals for actuators, sensors, and other devices. Its ability to handle both voltage and current output ranges makes it suitable for a wide range of applications, including motor control, process control, and temperature regulation.
