Description

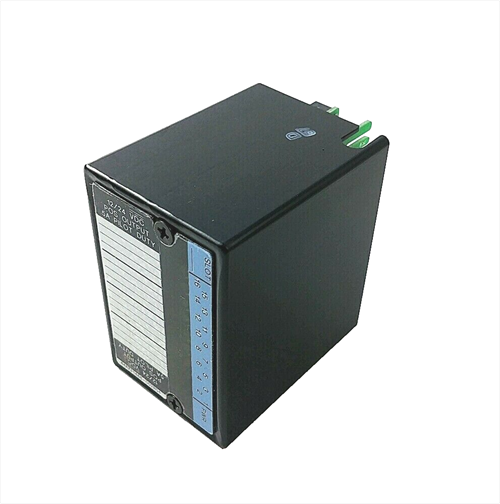

The GE IC670MDL740 is a 16-point discrete output module from GE’s Fanuc series of field control devices. It is designed for use in industrial automation and control systems. Below is a summary of the parameters, specifications, dimensions, weight, series, features, and applications of the GE IC670MDL740 in English.
Parameters and Specifications:
The IC670MDL740 provides 16 positive logic output channels.
Each channel is capable of delivering a maximum of 0.5 amps per point.
The output voltage range is typically 10 to 30 VDC, with a nominal voltage of 30 VDC.
The module consumes a maximum of 111 mA from the bus interface unit (BIU) power supply.
Dimensions:
The physical dimensions of the IC670MDL740 are approximately 115mm x 48mm x 150mm.
Weight:
The weight of the module is not specifically mentioned in the available sources, but it would be comparable to other similar-sized industrial electronic modules.
Series:
The IC670MDL740 belongs to the Fanuc series of industrial automation components offered by GE.
Features:
Each output channel has a separate status LED indicator to show the open/closed state.
The module is designed for installation on a bus interface unit (BIU) to expand I/O solutions.
It is typically used to control devices such as indicator lights, relay coils, solenoid drivers, and other devices with low current ratings.
The module incorporates a 5-amp fuse for connecting to an external power source.
It features浪涌电流 protection with a rated surge current of 2 amps for a maximum duration of 100 ms.
Applications:
The GE IC670MDL740 is suitable for use in industrial automation systems where precise and reliable control of discrete outputs is required.
It can be integrated into larger control systems to manage various electrical devices and components.
