Description

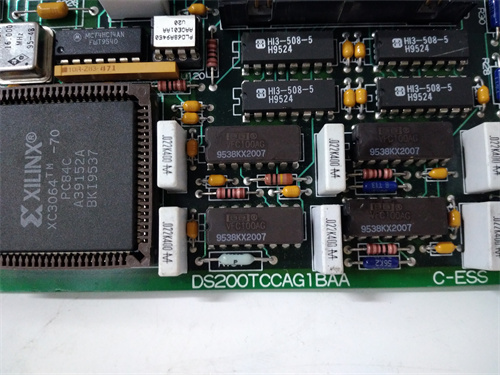

The GE DS200TCCAG1BAA module is a key component in various industrial automation and control systems. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Model Number: DS200TCCAG1BAA
Manufacturer: General Electric (GE)
Application: Widely used in automation systems, particularly in steel, power, metallurgy, chemicals, and petrochemical industries.
Dimensions and Weight:
Dimensions: According to some sources, the size is approximately 2.6×25.8x24cm, while another mentions 170mm x 105mm x 32mm.
Weight: It is stated to be approximately 120g in one source, while another lists it as 1.24kg. Please note that the weight may vary depending on the specific configuration and accessories.
Series:
The DS200TCCAG1BAA belongs to the GE Mark V series of control components.
Features:
Versatility: The module is suitable for a wide range of applications, including DCS systems, robot systems, and servo control systems.
Transmission Capability: It can transmit 128 channels of high-voltage and/or high-current outputs.
Built-in Test Logic: Features built-in test (BIT) logic that allows users to verify the operation of each channel under software control.
High-Current Capability: Has a high-current collector open-circuit driver with suppression.
Role and Function:
Control and Monitoring: The DS200TCCAG1BAA module is used for controlling and monitoring industrial equipment and processes. It enables precise and reliable operation of various devices and motors.
Compatibility: It is designed to integrate with other components in a control system, providing seamless communication and data exchange.
Industrial Applications: Commonly used in power plants, power transmission systems, and power distribution networks for measuring and monitoring analog signals from generators, turbines, transformers, and other equipment.
Please note that the specifications and features mentioned may vary depending on the specific version or revision of the DS200TCCAG1BAA module. It is recommended to consult the official GE documentation or contact their technical support team for the most accurate and up-to-date information. Additionally, when installing or using the module, it is crucial to follow all safety guidelines and procedures provided by the manufacturer.
