Description

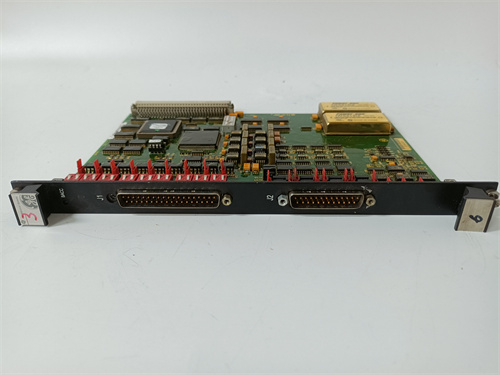

The GE DS200SIOBH1ACA is a digital input/output module specifically designed for industrial automation and control systems. Here is a breakdown of its key parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input/Output Channels: The module provides 16 digital input channels and 16 digital output channels.
Input Type Configuration: Each input channel offers a configuration option to select different input types, such as voltage or current ranges.
Output Channel Configuration: Each output channel can be configured for bypass or non-bypass operation, with a load capacity of up to 2A.
Power Supply: The module operates on a +5VDC work power.
Operating Temperature Range: It can operate within a temperature range of -40°C to 70°C.
Dimensions and Weight:
Size: The module measures approximately 3.25 inches (8.2 cm) in height, 2 inches (5.25 cm) in width, and 2.90 inches (7.3 cm) in depth (excluding the extended portion to the input/output terminal block).
Weight: The weight of the module is approximately 2KG.
Series:
The DS200SIOBH1ACA belongs to GE’s line of high-performance I/O modules.
Features:
Robust Design: The module features a solid aluminum housing, making it suitable for industrial environments.
LED Indicators: Circuit LEDs provide discrete and analog input/output status indication.
Flexibility: The module offers configurable input and output options, allowing it to adapt to different applications and system requirements.
Communication Interfaces: It may include communication interfaces for connecting with other systems, networks, or monitoring devices.
Functions and Applications:
Input/Output Control: The DS200SIOBH1ACA receives input signals from sensors, switches, and other devices, and controls output devices such as actuators, relays, valves, and motors.
Signal Processing: It processes input signals, performs logic operations, signal filtering, signal transformation, and other tasks to produce data suitable for system responses.
Fault Detection and Alarming: The module may have fault detection capabilities, able to detect issues with device connections or sensor malfunctions, and trigger alarms when necessary.
Industrial Applications: This module is well-suited for various industrial applications, including manufacturing, power plants, automation process control, energy management, and transportation systems.
