Description

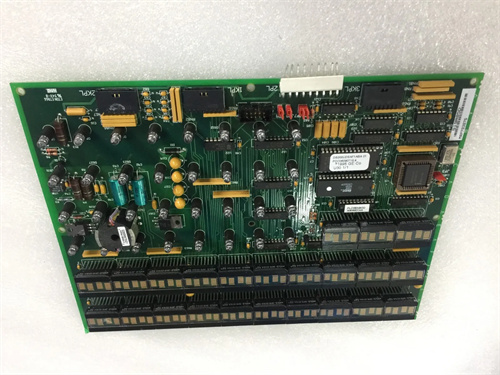

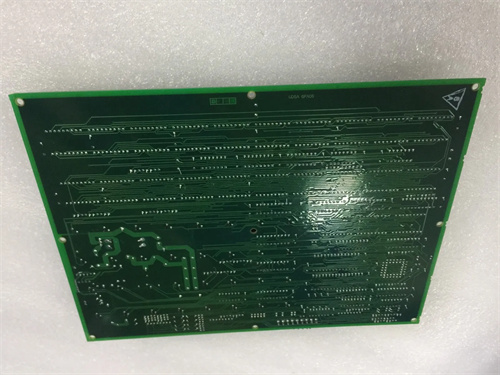

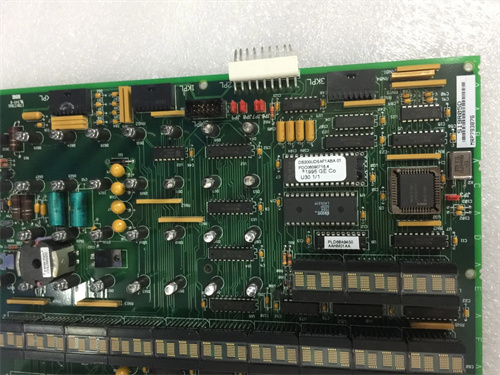

GE DS200NATOG2A is a specific type of voltage feedback scaling board, which is a variant of the NATO board series. Below are its key parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Voltage Range: The board is designed for use with 24V voltage.
Current Range: Current ranges from 100-400AA.
Feedback Scaling: DS200NATOG2A provides voltage feedback scaling, enabling precise voltage measurements and adjustments.
Connector: It features a 20-pin tape connector for circuit board output.
Attenuation: The board has attenuation voltage, set by stab connectors and jumpers.
Dimensions and Weight:
The board has dimensions of 8.83.64.7 inches.
Its weight is 2KG.
Series:
DS200NATOG2A belongs to the NATO board series, specifically its G2 variant.
Features:
Isolation: It is an isolated 12-bit analog output board, providing electrical isolation for increased safety and reliability.
MOV Protection: Metal oxide varistors (MOVs) are included to prevent excessive output voltages in case of input voltage interruptions.
LED Alarm: It features a LED alarm for visual indication of any issues or malfunctions.
Configurable: The board’s attenuation voltage can be configured using jumpers and resistors.
Applications:
DS200NATOG2A is suitable for industrial automation systems, control panels, and any other applications that require precise voltage scaling and feedback control.
