Description

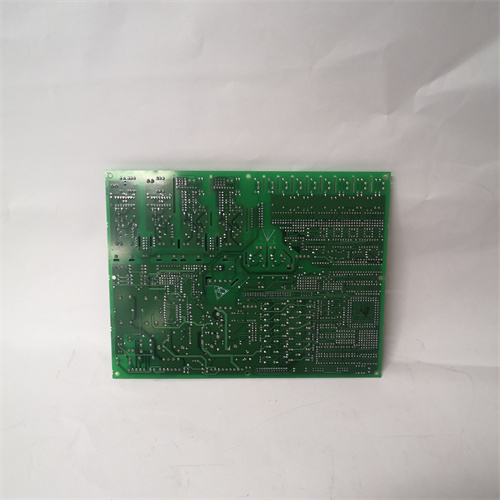

The GE DS200DDTBG2ABB is an auxiliary I/O terminal board specifically designed for industrial automation systems. It is a key component of the GE Mark V system, providing triple redundant backup for critical control and protection parameters. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Wavelength Range: N/A (This parameter is not applicable to the DS200DDTBG2ABB as it is not a wavelength-related device.)
Input/Output Channels: Includes high-voltage AC inputs, high-current signal inputs, low-current signal inputs, 4-20 mA current loop inputs, and non-dedicated voltage inputs.
Signal Measurement: Features 33 TP test points for signal measurement.
Dimensions and Weight:
Dimensions: The exact dimensions may vary, but the board typically fits into standard industrial automation rack systems.
Weight: The DS200DDTBG2ABB weighs approximately 15.5 kg.
Series:
The DS200DDTBG2ABB belongs to the DS200 series of industrial automation components from GE.
Features:
Triple Redundant Backup: As part of the GE Mark V system, it offers triple redundant backup for key controls and protection parameters.
Robust Connectivity: Supports a range of input and output signals, including high-voltage and high-current inputs.
Diagnostic Capabilities: Includes built-in diagnostics for system health monitoring and maintenance.
Multiple Outputs: Has four buffered analog outputs and two 4-20mA current outputs.
LED and Test Points: Features 17 LEDs (DS1-DS17) and 33 TP test points for signal monitoring and troubleshooting.
Role and Function:
The GE DS200DDTBG2ABB auxiliary I/O terminal board serves as a critical interface between sensors, actuators, and the main control system in industrial automation applications. It collects and converts analog and digital signals from various sensors and transmitters, and then passes them to the control system for processing. Conversely, it also converts control signals from the system and transmits them to actuators and other devices for execution. By doing so, the DS200DDTBG2ABB enables precise and reliable monitoring and control of industrial processes, equipment, and systems.
Please note that the specific parameters, specifications, dimensions, weight, and features may vary depending on the manufacturer’s updates or different versions of the module. It is recommended to consult the official GE documentation or contact their technical support team for the most accurate and up-to-date information. Additionally, when installing or using the module, ensure to follow all safety guidelines and procedures provided by the manufacturer.
