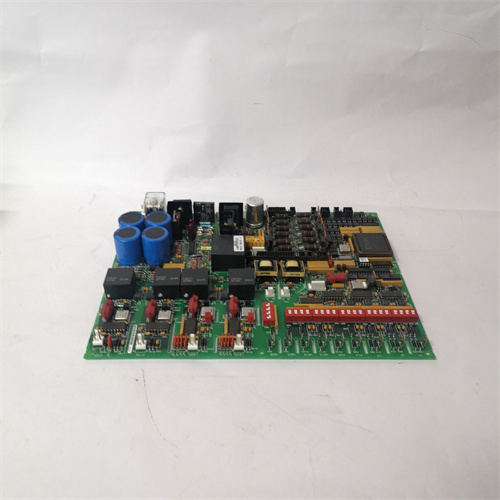

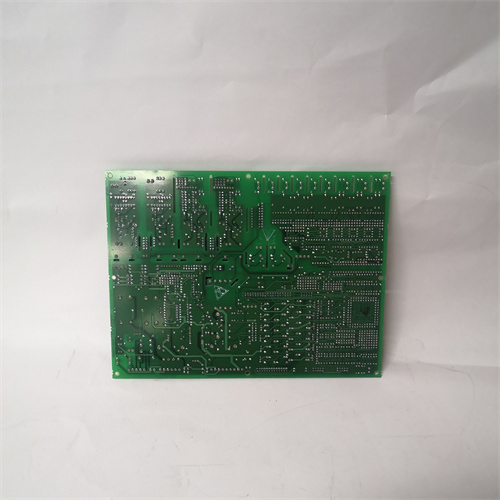

GE DS200DCFBG1BLC

Description

Parameters:

• Input Voltage: 24Vdc
• Input Current: 100mA
• Operating Voltage: 0 ~ 5vdc
• Operating Temperature: -40℃ ~ +85℃

Specifications:

• Brand: GE
• Model: DS200DCFBG1BLC
• Compatibility: Designed for GE Mark V series optional and replacement boards¹
• Power Source: AC input rated for 38 to 115 VAC²
• Frequency Range: Up to 500 kHz (depending on input voltage)²

Dimensions and Weight:

• Dimensions: 2.5 x 4.5 x 0.75 inches (approx.)³
• Weight: Not specified, but estimated to be around 1.2 kg based on similar products²

Series:

• GE Mark V series optional and replacement board design¹

Features:

• Multiple Protection: Includes overcurrent, overvoltage, and overload protection⁴
• Integrated Circuits: Consists of AC/DC monitoring circuits, control-level power supply circuits, motor excitation power supply circuits, and drive circuits²
• Configurable: Allows users to configure twelve jumpers and seven dip switches to meet external requirements²
• Monitoring and Diagnostics: Board status communicated through on-board LEDs. Three on-board fuses provide protection against interruptions or surges²
• Compatibility: Cross-compatible with various GE branded drives, such as DC2000, AC2000, CB2000, ME2000, and FC2000²

Applications:

• As a power supply module for PLC/DCS systems²
• For industrial automation and control systems, especially those requiring precise power control and monitoring²⁴⁵⁶
• Compatible with various GE drives, providing system control-level power and chassis fan power
