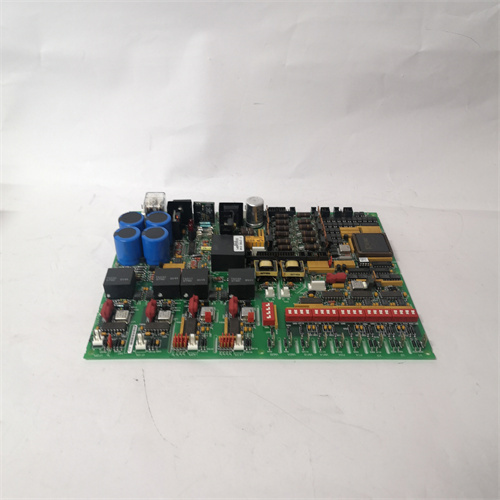

GE DS200DCFBG1BLC

Description

Parameters and Specifications:

• Input Voltage: 24Vdc¹
• Input Current: 100mA¹
• Operating Voltage: 0 ~ 5vdc¹
• Operating Temperature: -40℃~ +85℃²
• Dimensions: 2.5 x 4.5 x 0.75 inches¹

Series:

• Mark V Series²³⁴

Features:

• Compatibility: Compatible with various GE brand actuators and drives, including DC2000, AC2000, CB2000, ME2000, and FC2000²⁴.
• Multiple Protection: Includes features like overcurrent, overvoltage, and overload protection for system and equipment safety⁵.
• Complex Circuitry: Contains complex circuitry designed to power most drives²⁴.
• Monitoring and Diagnostics: Includes AC/DC monitoring circuits, status LEDs, and diagnostic test points⁴.
• Configurable: Allows configuration of twelve jumpers and seven dip switches to meet external requirements⁴.

Applications and Roles:

• Power Supply: Provides system control-level power for installed drives and power for chassis fans²⁴.
• Interoperability: Works with the Mark V series, which has technical support from General Electric⁴.
• Automation: Suitable for industrial automation and control systems, providing accurate data acquisition and control⁵.
