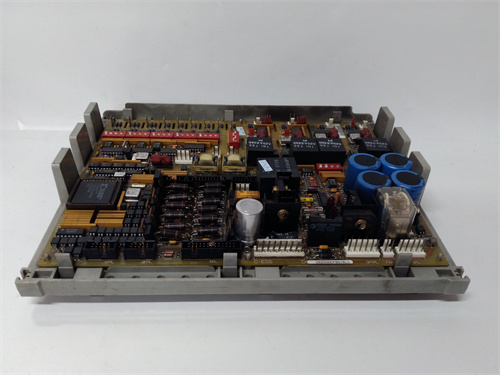

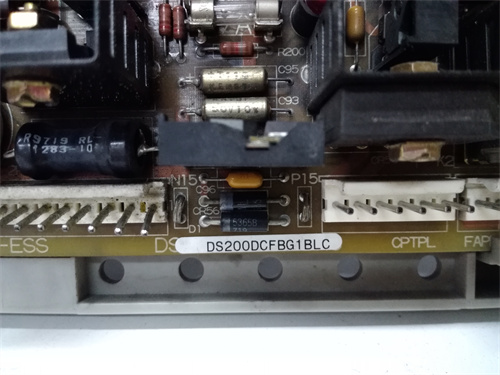

GE DS200DCFBG1BLC

¥4,025.00

Parameters and Specifications:

  • Input Voltage: 38 to 115 VAC12
  • Frequency Range: Up to 500 kHz (depending on input voltage)12
  • Operating Voltage: 0 ~ 5VDC (in another context, 24VDC)23
  • Operating Temperature: -40℃ to +85℃3
  • Size: 2.5 x 4.5 x 0.75 inches3
  • Weight: Not explicitly stated, but typically lightweight for its purpose2
Category:

Description

Parameters and Specifications:

  • Input Voltage: 38 to 115 VAC12
  • Frequency Range: Up to 500 kHz (depending on input voltage)12
  • Operating Voltage: 0 ~ 5VDC (in another context, 24VDC)23
  • Operating Temperature: -40℃ to +85℃3
  • Size: 2.5 x 4.5 x 0.75 inches3
  • Weight: Not explicitly stated, but typically lightweight for its purpose2

Series:

  • GE Mark V Series124

Features:

  • Compatibility: Compatible with various GE brand actuators and drives, including DC2000, AC2000, CB2000, ME2000, and FC200012
  • Power Supply: Provides system control-level power for installed drives and power for chassis fans12
  • Protection: Equipped with multiple protection functions, such as over-current, over-voltage, and overload protection5
  • Circuitry: Contains complex circuitry systems designed to power most drives12
  • Monitoring: Includes AC and DC monitoring circuits, control-level power circuits, motor field power circuits, and drive circuits2
  • Configuration: Users can configure twelve jumpers and seven dip switches on the card to meet any external requirements2
  • Diagnostics: Onboard status is communicated to users through onboard indicators, including two LEDs and a neon indicator2

Applications:

  • GE DS200DCFBG1BLC is a power supply board designed for optional and replacement boards in the Mark V series. It is used in industrial automation and control systems where it provides critical power and monitoring functions for various GE drives
