Description
GE DS200DCFBG1BJB is a specialized control board or module that finds extensive application in industrial automation and control systems. Here is a detailed breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters:
Voltage: Typically operates at 24V.
Current Range: Can handle a wide range of currents, from 100A to 400A.
Specifications:
Power Supply: Designed to receive control-level power from a source transformer, with input voltages ranging from 38 to 115 VAC.
Output Frequency: Capable of generating output frequencies up to 500 kHz.
Dimensions and Weight:

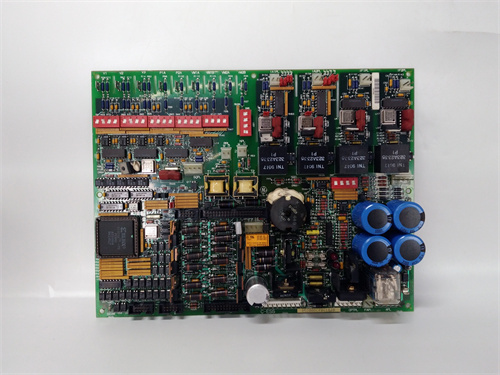

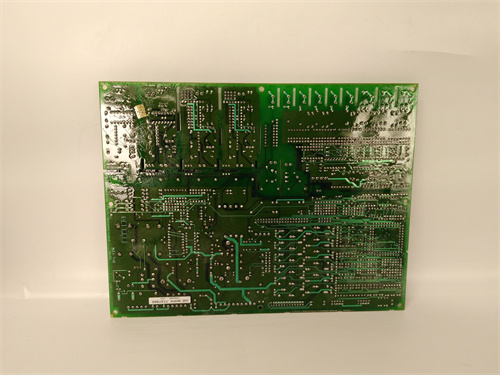

Dimensions: While exact dimensions may vary, it is typically described as a large rectangular circuit board.
Weight: The weight is approximately 2KG. However, some sources list a lighter weight of 0.53KG, which might be due to different versions or measurement standards.
Series:
GE DS200DCFBG1BJB belongs to the Mark V series of control boards, which was one of the last series to utilize GE’s patented Speedtronic control system technology.
Features:
Versatile Connectivity: It features multiple DIP switches and configurable jumpers that allow for scaling or changing various inputs.
Monitoring and Diagnostics: The module provides monitoring and diagnostic capabilities for sensor status.

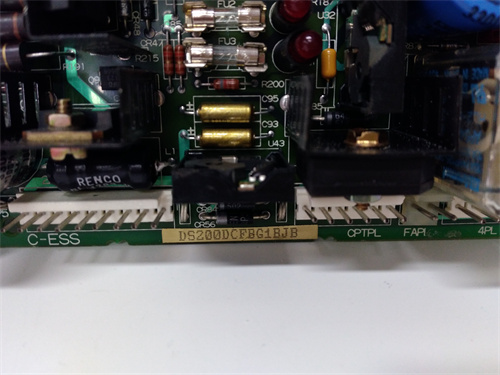

Indicator Lights: Equipped with a neon light for indicating fuse failures in the 115 VAC line, as well as two LED indicator lights for fuse failures in the +24 VDC and -24 VDC lines.
Control Circuitry: Incorporates control-level power circuitry, motor voltage attenuation circuits, AC line magnetics and zero-crossing circuits, contactor drive circuits, and field/pole SCR ignition circuits.
Functions/Role:
Power Supply for Drives and Fans: The DS200DCFBG1BJB is primarily designed to provide control-level power to drives and cabinet fans.
Automation and Control: It finds extensive application in industrial automation systems, enabling precise and responsive control of various industrial devices and processes.
Compatibility: The module is compatible with a wide range of applications, including the DC2000, CB2000, FC2000, GF2000, ME2000, and AC2000 IGBT drive applications, as well as the EX2000 application, albeit with a different utilization pattern.
