Description

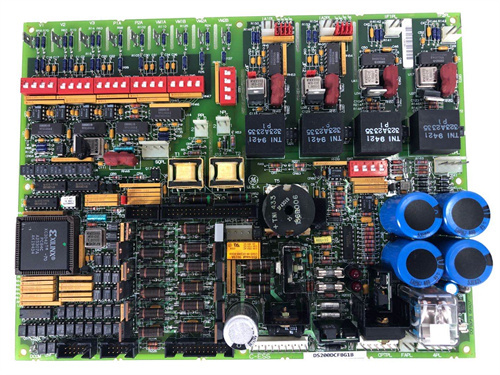

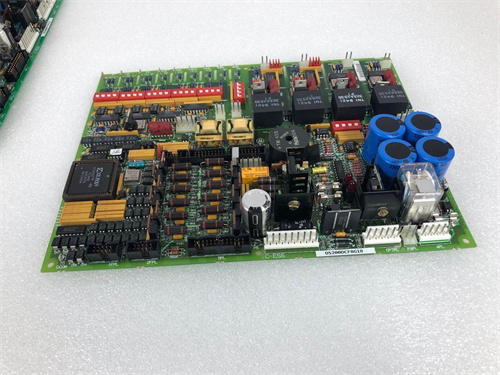

GE DS200DCFBG1BGB is a control power board specifically designed for the Mark V board series. Here is a detailed overview of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Voltage Range: 38 to 115 VAC.
Output Frequency Range: 0 to 500 kHz, depending on the input voltage.
Control Level Power: Provided by the board.
Motor Field Power: Also provided by the board.
Dimensions and Weight:
Dimensions: The exact dimensions may vary slightly, but it is typically a standard size suitable for installation in most control systems.
Weight: The weight is approximately 2KG.
Series:
The DS200DCFBG1BGB belongs to the DS200 series of power and control boards.
Features:

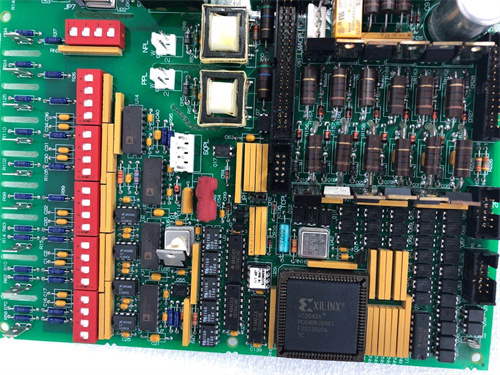

Integrated Circuits: The board includes numerous circuits for powering the board and installed drivers.
Configurable Options: It incorporates jumpers and DIP switches, providing users with configurable system options.
Diagnostic Indicators: Two LEDs and a neon lamp are used for fuse status diagnosis.
Protection Mechanisms: Three protective fuses safeguard the power supply against any interruptions.
Test Points: Five test points are available for monitoring the voltage levels across the entire board.
Functions/Role:
The DS200DCFBG1BGB is used for providing power and control to the Mark V board series.
It supplies control-level power and cabinet fan power to the drivers.
The board is compatible with various drive series, including AC2000, CB2000, DC2000, FC2000, ME2000, and EX2000, although the interaction with the EX2000 series differs.
It is an integral part of industrial automation systems, ensuring the smooth and efficient operation of connected devices and components.
