Description

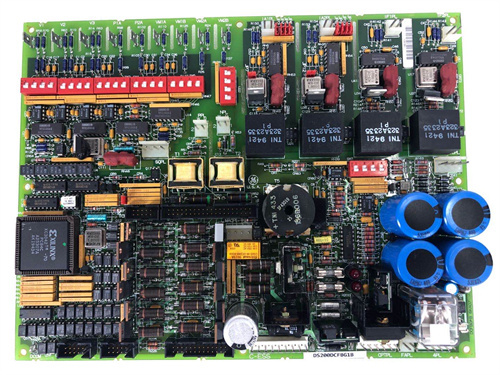

The GE DS200DCFBG1BGB is a power supply board manufactured by General Electric (GE). It is designed to provide stable direct current (DC) power to electronic modules and components in industrial equipment and systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters & Specifications:
Input Voltage Range: The DS200DCFBG1BGB accepts input voltages ranging from 38 to 115 VAC, allowing it to adapt to various power sources.
Output Frequency: Depending on the input voltage, the output frequency of the board can range from 0 to 500 kHz.
Power Conversion: The board converts alternating current (AC) or other DC power sources into a stable DC output, suitable for powering industrial electronics.
Dimensions & Weight:
Dimensions: The DS200DCFBG1BGB measures approximately 33.0 cm in height and 17.8 cm in width.
Weight: The weight of the board is approximately 2 kg.
Series:
The DS200DCFBG1BGB belongs to the EX2000 series of power supply boards, although it can also be used with other series such as AC2000, CB2000, DC2000, FC2000, and ME2000.
Features:
Multiple Circuits: The board incorporates numerous circuits designed to power both the circuit board and installed drivers.

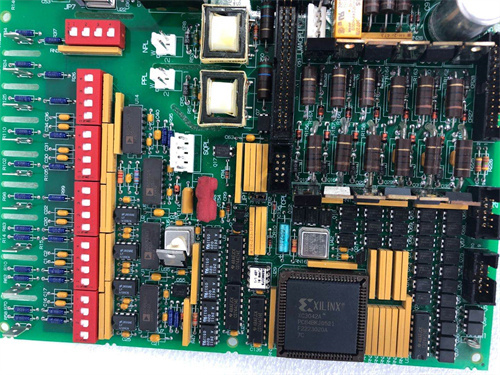

System Configurability: Integrated jumpers and DIP switches allow users to configure the system to their specific needs.

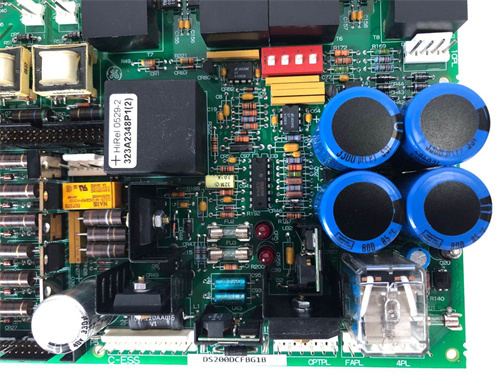

Diagnostic Indicators: LED and neon lights provide diagnostic information on fuse status, while five test points enable voltage monitoring across the entire board.
Protection: Three protective fuses safeguard the power supply against any interruptions.
Applications & Role:
Industrial Control: The DS200DCFBG1BGB is commonly used in industrial control systems, where its high stability and voltage/current accuracy ensure reliable operation of connected equipment.
Power Supply for Electronics: It provides a stable DC power source for electronic modules and components in various industrial applications, including automation, power systems, and mechanical equipment.
Please note that the specifications and features mentioned above may be subject to change as the manufacturer may introduce updates or modifications to the product. It is always recommended to refer to the latest technical documentation or contact GE directly for the most accurate and up-to-date information on the DS200DCFBG1BGB power supply board.
