Description

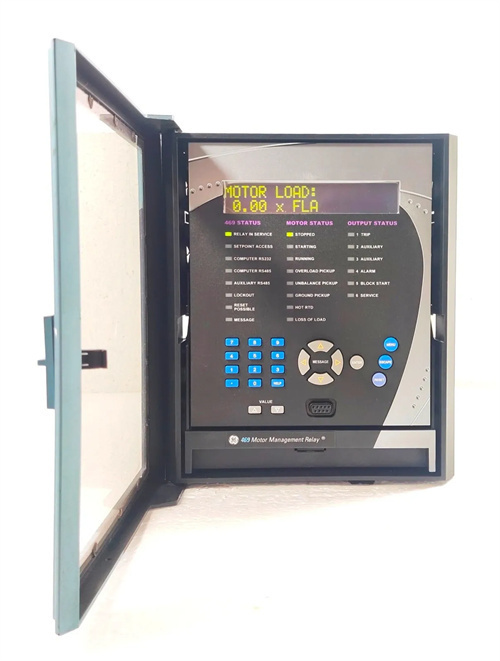

GE 469-P5-HI-A20-E SR469-CASE is a motor protection device produced by General Electric (GE) specifically designed for protecting and monitoring motor and generator systems. It ensures the safe and efficient operation of these systems by preventing damage from electrical issues such as overcurrent, overheating, and short circuits.
Parameters and Specifications:
Control Power: The device operates on a control power range of 70-265 VAC and 90-300 VDC.
Phase CT Secondary: It features a 5-ampere phase CT secondary.
Output: It provides a 4 to 20 mA analog output.
Dimensions and Weight:
Dimensions: The exact dimensions of the device may vary slightly based on its packaging and accessories. However, it is typically designed to fit within a standard enclosure or case.
Weight: The weight also depends on the complete assembly, including any additional components or accessories.
Series:
GE 469-P5-HI-A20-E SR469-CASE belongs to the SR469 series of motor management relays.
Features:
Comprehensive Motor Protection: The device offers a range of protection functions, including overload protection, phase loss protection, and imbalance protection.
Modular Design: Its modular design allows for easy installation, maintenance, and expansion.
Multiple Alarm Functions: It features various alarm functions, such as fault alarms and overload alarms, to alert staff of any issues.
Programmable Control: The device can be programmed to achieve different control logic, meeting the protection needs of various motors.
Enhanced Front Panel Design: The front panel includes an RS-232 program port interface, a large LCD display, and a sealed withdrawable handle for unauthorized access prevention.
Communication Interfaces: It supports communication protocols and interfaces like Ethernet/IP, Modbus TCP/IP, and others, facilitating data transmission and communication with other devices and systems.
Applications:
GE 469-P5-HI-A20-E SR469-CASE is suitable for industrial applications where high reliability and stability of motor protection are crucial. It finds widespread use in power systems, manufacturing facilities, and other industrial settings where motors and generators require constant monitoring and protection.
