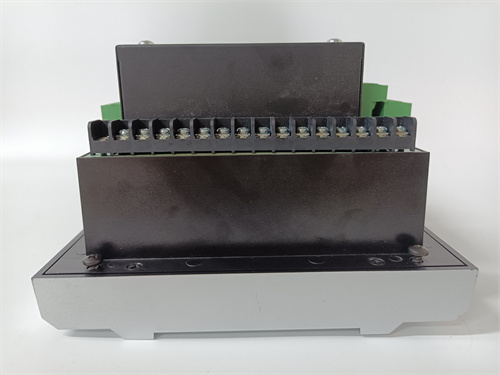

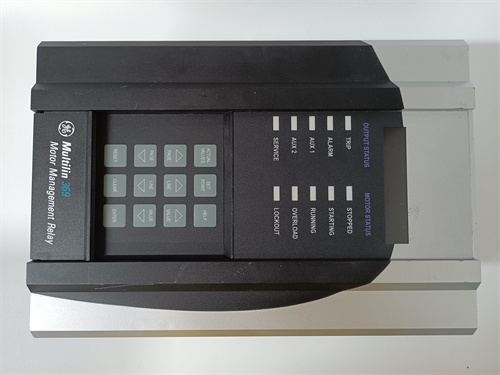

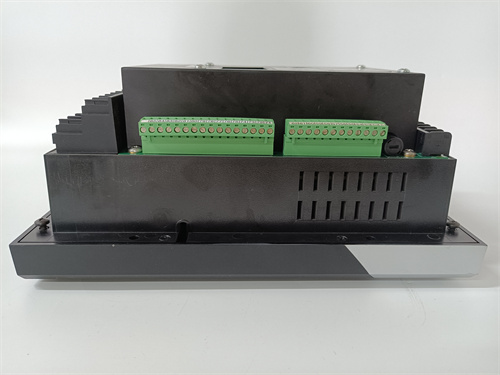

GE 369-HI-R-M-F-E-0-0

Description

Parameters and Specifications:

• Control Power: Range from 50-300 VDC and 60-264 VAC.
• Measurement Quantities: Includes phase current, current demand in amperes, motor load in x fLA, percentage of unbalanced current, ground fault current in amperes, input switch status (open or closed), relay output status (energized or de-energized), RTD temperatures, rotational frequency in Hz, phase and line voltages, frequency in Hz, power factor leading/lagging, active power and active power demand in watts, reactive power and reactive power demand in vars, apparent power and apparent power demand in VA, actual power consumption in MWh, and reactive power consumption/generation in Mvarh¹².
• Communication Ports: RS232 port on the front of the relay and RS485 port on the rear³⁴.
• Environmental Parameters: Operating range from -40°C to +60°C, storage range from -40°C to +80°C. Maximum ambient humidity up to 95% non-condensing³.

Dimensions and Weight:

• Dimensions: Approximate dimensions are Height 11.5 inches x Width 5.5 inches x Length 8.5 inches¹³.
• Weight: Approximately 8 pounds⁴.

Series:

• Part of the GE Multilin 369 series of motor management relays³⁵.

Features:

• Monitoring and Protection: Monitors voltage, watts, frequency, and energy, and generates protective functions based on the generated values⁵.
• Event Recording: Immediately reports trip causes and temperature and data values at the time of trip, enabling users to analyze issues in the system⁴.
• Pre-Trip Alarms: Notifies users before trips due to reasons such as ground faults, mechanical blockages, and RTD overtemperature⁵.
• Learn and Adapt: Capable of “learning” individual motor parameters and adapting them to individual applications⁶.
• Additional Connectivity: Optional fiber optic port for remote RTD connectivity².

Applications:

• GE 369-HI-R-M-F-E-0 is designed to protect and control motors and their associated components through features such as pre-trip alarms and over-torque correction⁵. It helps reduce troubleshooting time and extend system life, making it an excellent choice for medium-sized motors⁴.
