Description

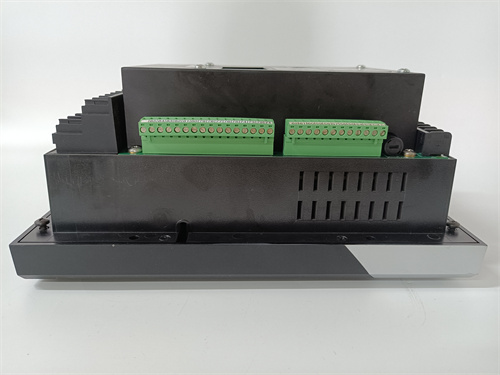

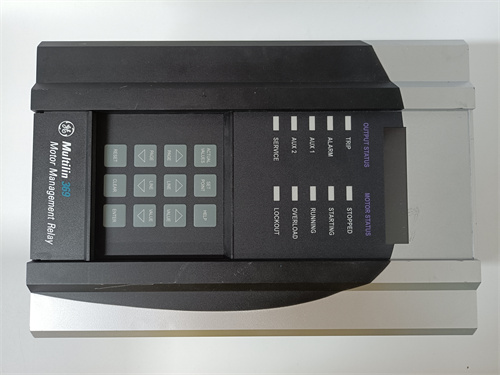

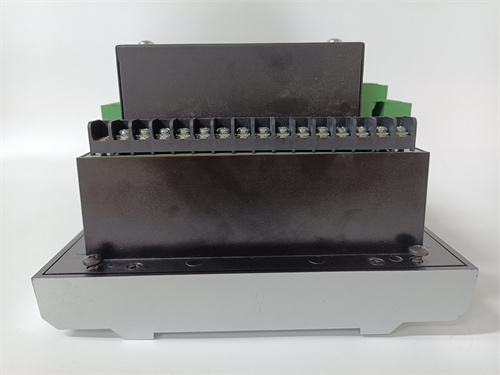

The GE 369-HI-R-M-F-E-0 is a motor management relay designed by GE Multilin. This relay offers protection and monitoring for three-phase motors and their associated systems. Here are its key parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Control Power: Supports a control power range of 50-300V DC or 40-265V AC.
Measurement Capabilities: Includes various measurements such as phase current, current demand, motor load, unbalanced current percentage, grounding current, input switch status, relay output status, RTD temperature, rotational frequency, phase and line voltage, power factor, active power, reactive power, apparent power, actual power consumption, and reactive power consumption/generation.
Communication Protocols: Supports Modbus/TCP, Profibus-DP, DeviceNet, and other communication interfaces.
Dimensions and Weight:
Dimensions: Approximate dimensions are 15.5 inches x 12.9 inches x 22.8 inches (394 mm x 328 mm x 579 mm).
Weight: Approximately 53.6 pounds (24.3 kg).
Series:
Belongs to the 369 series of motor protection relays from GE Multilin.
Features:
Protection and Monitoring: Provides comprehensive protection and monitoring for three-phase motors and their associated systems.
Configurable Options: Offers various options such as an optional fiber port for remote RTD connection and a metering package that adds access to VT inputs, allowing voltage and power measurements.
Communication Ports: Includes multiple communication ports such as RS232, RS485, and fiber for seamless integration with other systems.
Flexibility: Supports a range of control input power levels and provides numerous basic functions and options.
Role/Functions:
Motor Protection: Prevents damage to motors by detecting and responding to various fault conditions.
System Monitoring: Monitors the health and performance of the motor and associated systems, providing valuable data for predictive maintenance and troubleshooting.
Integration: Seamlessly integrates with larger automation systems, enabling centralized control and monitoring.
