Description
Parameters and specifications:

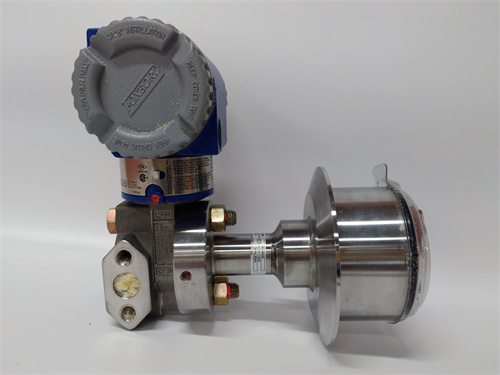

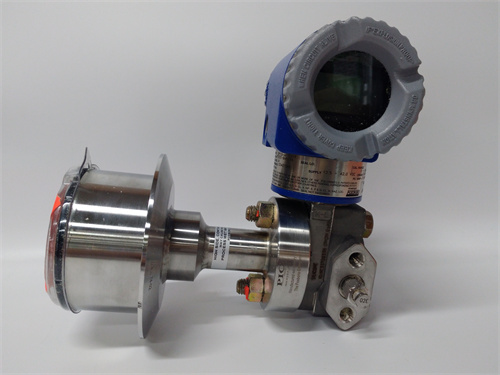

Model: IDP10-AF1C01F
Function: It is usually used to measure various industrial process parameters, such as pressure, temperature, flow, etc., and convert these parameters into standard electrical signals (usually 4-20 mA) or digital signals for processing and analysis by monitoring and control systems.
Measurement parameters: May primarily be used to measure pressure, but the exact range may vary by model and configuration.
System environment: suitable for constant temperature environment.
Voltage: 90V.
Current: 19A.
Memory: 125.
Pressure: 30 (unit not specified, may be some pressure range or standard).
Measurement range: In some cases, the measurement range may be 1kPa.
Size and weight:
Size: Some sources mention that the size is 50*76mm
Weight: About 1kg.
Series:
IDP10-AF1C01F is part of the FOXBORO I/A series.
Features:
Intelligence: As an intelligent two-wire d/p battery transmitter, it provides accurate and reliable differential pressure measurement.
Output signals: Transmit 4 to 20 mA output signals with superimposed HART digital signals for remote configuration and monitoring.
Durability: Aluminum housing with a durable, corrosion-resistant epoxy finish is also available in 316 stainless steel, both NEMA 4X and IP66 rated.
Multiple mounting options: An optional mounting bracket group allows conduit, surface or manifold mounting of the transmitter.
Certification: Available as a SIL2 certified transmitter.
Functions:
Widely used in industrial automation and process control, including chemical, oil and gas, manufacturing, power, water treatment and other applications.
