Description

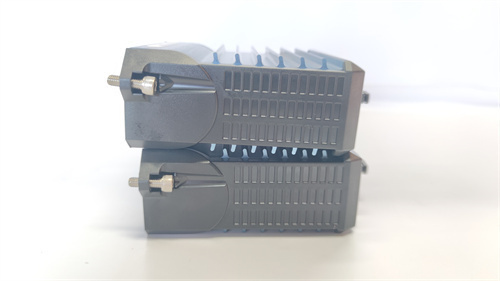

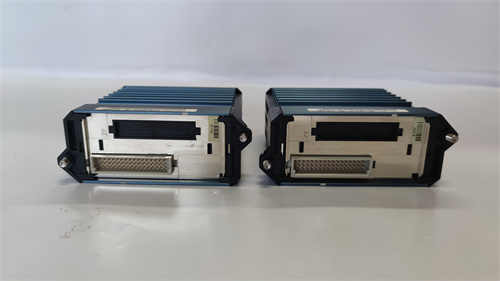

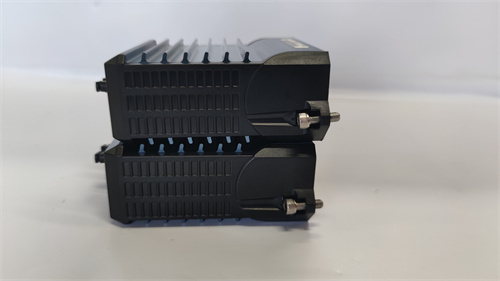

FOXBORO P0922YU FPS400-24 is a power module specifically designed for industrial automation and process control applications. Here is an overview of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Voltage Range: 85 to 265 VAC or 108 to 145 VDC, with a nominal 125 VDC.
Output Voltage: 24.0 VDC, with a tolerance of ±0.2 VDC.
Input Current: At 85 VAC input, it is 5.6 A RMS maximum; at 230 VAC input, it is 2.5 A RMS maximum.
Overcurrent Protection: Present with a rated current of 25 A.
Operating Temperature: -30°C to 71°C (-58°F to +160°F).
Operating Humidity: 5% to 95% non-condensing.
Dimensions and Weight:
Dimensions: Approximately 17.8 cm (height) x 10.7 cm (width) x 21.5 cm (depth).
Weight: Approximately 2KG.
Series:
The FOXBORO P0922YU FPS400-24 belongs to the FPS400 series of power modules.
Features:
Stable Power Supply: The module provides a stable 24V DC output voltage, suitable for powering industrial control systems.
High Reliability: FOXBORO products are renowned for their reliability and stability, and this power module is no exception.
Protection Mechanisms: Incorporates various protection features, such as overcurrent protection, to ensure safe operation.
Ease of Installation and Maintenance: Designed for easy integration into existing systems and straightforward maintenance.
Functions and Applications:
Power Supply for Control Systems: The FOXBORO P0922YU FPS400-24 is intended to provide power to control systems in industrial automation and process control applications.
Wide Range of Applications: Its versatility makes it suitable for use in various industries, including power systems, manufacturing, building automation, transportation systems, and data centers.
Please note that specifications, dimensions, and other parameters may vary slightly depending on the manufacturer’s updates or modifications. It is always recommended to consult the official documentation or contact the manufacturer for the most accurate and up-to-date information.
