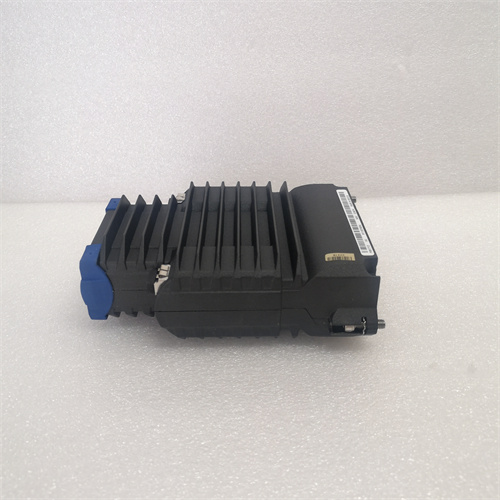

FOXBORO P0917YZ FCP270

Description

Parameters and Specifications:

• Model Number: FCP270 P0917YZ
• Brand: Foxboro (Schneider Electric)
• Memory: 16 MB SDRAM, 32 MB Flash Memory
• Input Voltage (Redundant): 24 V DC typical
• Power Consumption (per non-fault-tolerant module): Maximum 8.5 W
• Operating Temperature: 0 to +60°C (+32 to +140°F)
• Configuration: Single processor module, with patented fault-tolerant operation using two control modules for enhanced reliability¹

Dimensions:

• Length: 14.7 cm
• Width: 5.15 cm
• Height: 11.4 cm

Weight:

• Net Weight: 0.6 kg
• Shipping Weight: 1.5 kg

Series:

• Not specified as a series, but a model within Foxboro’s field control processor line.

Features:

• Processing Power: High-performance processing capabilities for fast execution of complex control logic and algorithms².
• Versatility: Supports various control algorithms and strategies to meet diverse process application needs².
• Communication Interfaces: Connects to grid control networks via standard 100 Mbps fiber-optic Ethernet¹.
• Fault-tolerant Operation: Unique patented fault-tolerant operation using two control modules for enhanced reliability¹².
• Environmental Resistance: Rugged die-cast aluminum enclosure suitable for G3 harsh environments and CE certified¹.
• Fieldbus Support: Supports up to 32 200-series FBMs, 128 200-series FBMs with FEM100, and 64 100-series FBMs¹³⁴.

Applications:

• Used in various industrial and process control applications, including chemical plants, power plants, water treatment plants, oil and gas production, and manufacturing². It is typically employed in monitoring and controlling various process variables and equipment in industrial automation and control systems³.

Role:

• As a field control processor, the FCP270 P0917YZ is responsible for executing control logic, data acquisition, alarm detection, and notification. It interfaces with field devices and sensors to provide real-time monitoring and control of industrial processes
