Description

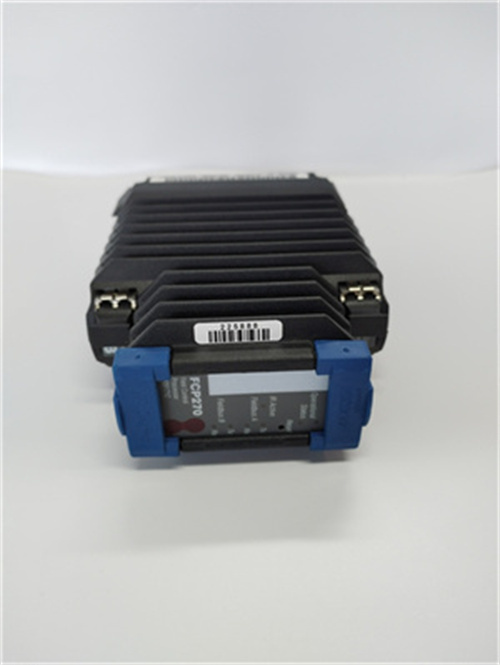

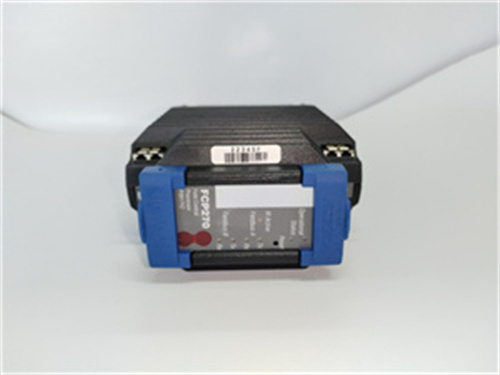

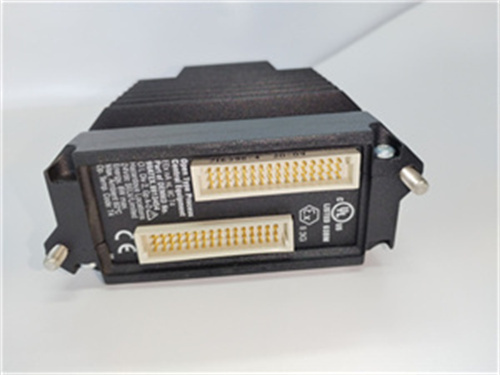

FOXBORO FCP270 is a high-performance field control processor designed for industrial automation and process control applications. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Type: FCP270 is a field control processor.
Memory: It features 16 MB of SDRAM and 32 MB of flash memory.
Input Voltage (Redundant Voltage): Typically operates at 24 VDC.
Power Consumption: Maximum power consumption per non-fault-tolerant module is 8.5 W.
Operating Temperature: Ranges from 0 to +60°C (+32 to +140°F).
Dimensions and Weight:
Dimensions: Measures 14.7 cm (length) x 5.15 cm (width) x 11.4 cm (height).
Weight: Has a weight of 0.6 kg, while the shipping weight is 1.5 kg.
Series:
FCP270 belongs to the FOXBORO (now Schneider Electric) field control processor series.
Features:
Process Control and Monitoring: FCP270 is capable of executing complex control algorithms and logic for process control and monitoring.
Connectivity: It can be connected to a MESH control network via standard fiber optic 100 Mbps Ethernet.
Fieldbus Module Compatibility: Supports up to 32 series 200 FBMs, 128 series 200 FBMs with FEM100, and 64 series 100 FBMs without the need for a fieldbus communication module.
Fault Tolerance: Offers unique patented fault-tolerant operation using two control modules, significantly improving reliability compared to other process controllers.
Durability and Environmental Suitability: Certified for CE and designed with a rugged die-cast aluminum housing that allows for installation in G3 harsh environments.
Applications and Functions:
FCP270 is widely used in various industrial automation and process control systems.
It can be applied in industrial process control, temperature control systems, pressure and flow control, level monitoring and control, data acquisition, and monitoring.
It receives various signal inputs and executes corresponding control operations based on set logic and algorithms.
FCP270 is also suitable for use in power generation, transmission, and distribution, building automation, medical equipment, traffic and transportation systems, environmental monitoring, agriculture, and laboratory equipment.
