Description
Parameters and specifications:
Input signal: Support DC voltage, 4-20 mA current, thermocouple, RTD (thermal resistance), resistance and frequency and other signals.
Output signal: DC voltage, 4-20 mA current and other signals.
Power supply: 12-30 VDC.
Operating temperature: -40 to 85 degrees Celsius.
Field Device Interface: Supports various types of field I/O device protocols, including HART, FOUNDATION Fieldbus, Modbus, and more.
Ethernet interface: 10/100Mbps copper Ethernet.
Size and weight:
Size: 146 mm x 89 mm x 30 mm (quoted from search results [2]) or 44.5 mm x 101.6 mm x 114.3 mm (quoted from search results [3]). Please note that there are two different sizes here and differences may be due to product updates or different models.
Weight: 0.5 kg (quoted from search results [2]) or 0.2 kg (quoted from search results [3]).
Series:

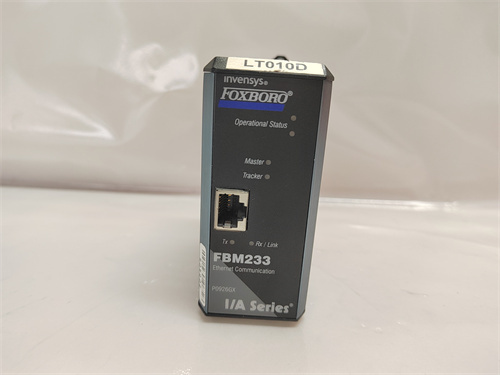

The FBM233 is part of the FOXBORO FBM family.
Features:
Redundant design: The FBM233 Redundant Field Device System Integrator (FDSI) module provides an Ethernet interface between a single – or dual-port field I/O device and the EcoStruxure™ Foxboro™ DCS, providing redundancy at the field bus module (FBM) level.
Communication interface: Equipped with an RJ-45 connector (10/100Mbps copper Ethernet connection), it can be connected to dual-port Ethernet devices and can communicate with one or more external devices via an Ethernet switch or hub.
Software drivers: I/O software drivers can be downloaded from the available protocol library to identify the specific protocol used by the device.
Rich functions: including data acquisition, signal processing, communication interface, data recording and storage, real-time monitoring, remote access, alarm and alarm, modular design and other functions.
Functions:
The FBM233 control board module is one of the important components used in industrial automation and control systems, and its main functions include monitoring and controlling equipment and signals in various industrial processes.
Widely used in industrial automation, power system monitoring, equipment condition monitoring, fault diagnosis, data acquisition and process control and other applications.
