Description
Parameters and specifications:

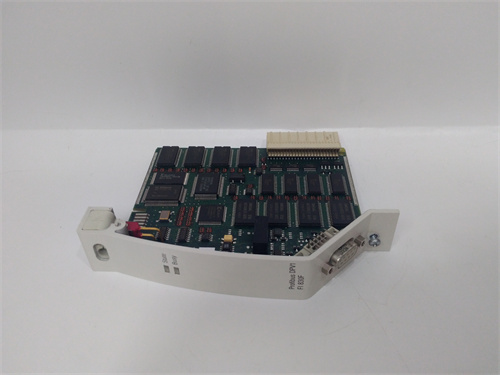

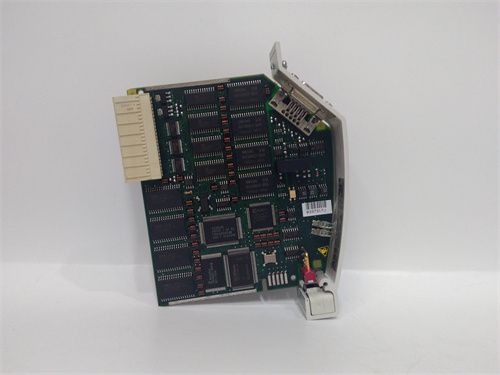

FI830F is a PROFIBUS fieldbus interface that complies with the PROFIBUS-DP V1 standard (DIN 19245 Amendment 1) and supports baud rates up to 12 MBd.
Transmission: Transmission rate up to 12 MBd, support up to 126 slave stations.
Port: Physical port RS485, electrical isolation, onboard shared memory (256 KB).
Configuration: Configuration and parameter setting is done entirely through Control Builder F without the need for additional external configuration tools.
Redundancy: Line redundancy can be achieved with an external device (RLM 01) and, when combined with a second AC 800F, can also operate in redundant master mode.
Size and weight:
Weight: Approximately 0.26 kg (shipping weight is 1.3 kg).
Series:
The FI830F is one of the field bus modules produced by ABB and belongs to the third generation AC800M series.
Features:
Modular design: The FI830F module is an integral part of the modular PLC with flexibility and scalability.
High-speed communication: Supports transfer rates up to 12 MBd for high-speed data transfer needs.
Easy configuration: Configuration and parameter setting via Control Builder F, no additional external configuration tools required.
Redundant operation: Supports line redundancy and redundant master station mode to improve system reliability and stability.
Functions:
The FI830F module plays a key role in the industrial automation system, as an interface to the Profibus fieldbus, to achieve digital and intelligent control.
It can connect field equipment to the control system for data exchange and communication, support a variety of rates and slave equipment, and meet various industrial automation needs.
