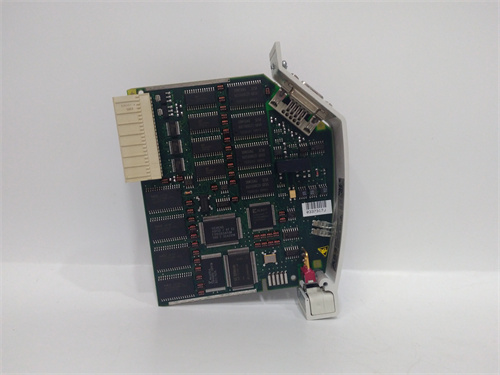

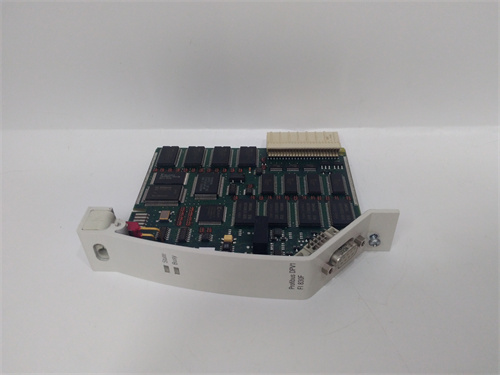

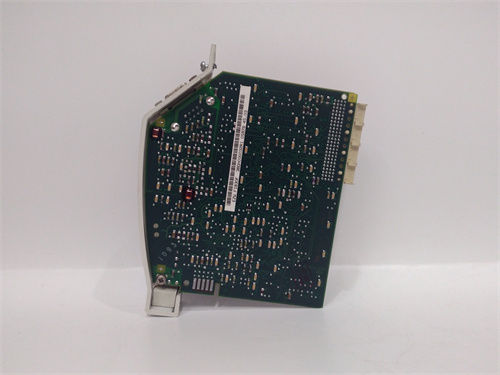

FI830F

Description

Parameters and specifications
Brand: ABB
Model: FI830F
Product type: FI830F Field bus module Profibus-DP V1
Features: Fieldbus communication module, compliant with the PROFIBUS-DP V1 standard (DIN 19245 Amendment 1), supports baud rates up to 12 MBd
Port: The physical port is RS485
Memory: Onboard shared memory (256 KB)
Size and weight
Weight: According to the search results, the FI830F weighs about 0.26 kg

trait
Electrical isolation: FI830F has an electrical isolation function.
Module hot swap: The module can be removed or inserted during operation.
Redundant operation: Supports redundant operation and can be combined with other devices (such as RLM 01) to achieve line redundancy.
Easy configuration: Configuration and parameter setting is done entirely through Control Builder F without the need for additional external configuration tools.

effect
Fieldbus communication: FI830F is the interface of Profibus fieldbus, which is used to realize digitalization and intelligent control on the fieldbus.
Connection and expansion: As a master station, up to 126 Profibus slave stations can be connected, thus expanding the function and application range of the system.
