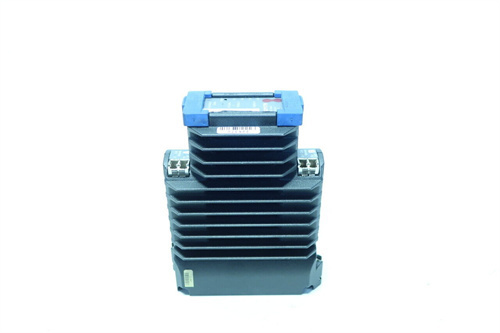

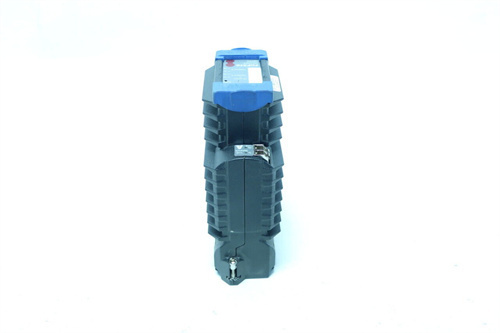

FCP270

Description

–‌Parameters‌:
–‌Memory‌: Equipped with 16 MB SDRAM and 32 MB flash memory12.
–‌Processor‌: Microprocessor-based AMD Elan 520 running at 100MHz, with an I/O processor CommControl™ ASIC2.
–‌Communication‌: Features a 100 Mbps Ethernet interface for connection to MESH control networks, and supports two 2 Mbps or 268 Kbps HDLC fieldbus networks12.

–‌Specifications‌:
–‌Input Voltage‌: Redundant 24V DC typical1.
–‌Power Consumption‌: Maximum 8.5W per non-fault-tolerant module1.
–‌Operating Temperature‌: 0°C to +60°C (+32°F to +140°F)1.

–‌Dimensions & Weight‌:
–‌Dimensions‌: 14.7 cm x 5.15 cm x 11.4 cm (L x W x H)13.
–‌Weight‌: 0.6 kg (device weight), 1.5 kg

–‌Series‌:

• Belongs to the FOXBORO (now Schneider Electric) range of process automation and control equipment42.

–‌Characteristics‌:
–‌Fault Tolerance‌: Can be configured with two processor modules for fault-tolerant operation1.
–‌Flexibility‌: Supports up to 32 200 series FBMs, 128 200 series FBMs with FEM100 expansion, and 64 100 series FBMs1.
–‌Time Synchronization‌: Supports time synchronization via external GPS satellite12.
–‌Rugged Design‌: Enclosed in a sturdy die-cast aluminum housing suitable for use in G3 harsh environments1.

–‌Role‌:
–‌Process Control‌: Acts as a distributed controller, executing logic, timing, sequencing, and control strategies defined by the user12.
–‌Data Acquisition & Alarming‌: Collects data from field devices, detects alarms, and sends notifications1.
–‌System Integration‌: Integrates seamlessly with MESH control networks and various fieldbus modules for comprehensive process automation
