Description
Parameters and Specifications:

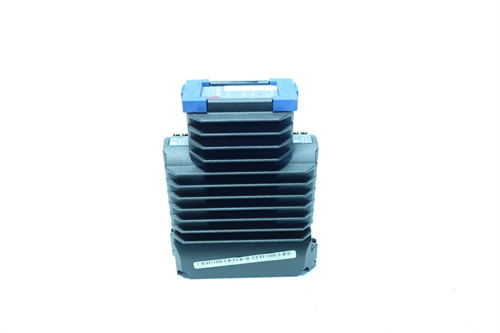

Product Type: Field Control Processor 270 (FCP270).
Memory Size: 16 MB SDRAM and 32 MB flash memory.
Input Voltage (Redundant Voltage): 24 VDC typical.
Power Consumption: Maximum 8.5 W per non-fault-tolerant module.
Operating Temperature: 0 to +60°C (+32 to +140°F).
Dimensions and Weight:
Dimensions: Length – 14.7 cm, Width – 5.15 cm, Height – 11.4 cm.
Weight: 0.6 kg.
Shipping Weight: 1.5 kg.
Features:
Control and Monitoring: It can be used for process control and monitoring in a wide range of applications, including industrial process control, temperature control systems, pressure and flow control, level monitoring and control, as well as data acquisition and monitoring.
Connectivity: It supports up to 32 series 200 Fieldbus Modules (FBM) and up to 128 series 200 FBMs with Fieldbus Extension Modules 100 (FEM100). Additionally, it supports up to 64 series 100 FBMs.
Communication: It can connect to the MESH control network through a standard optical fiber 100 Mbps Ethernet connection.
Durability and Reliability: The FCP270 has a robust cast aluminum housing, making it suitable for use in harsh G3 industrial environments. It is also CE-certified for field installation.
