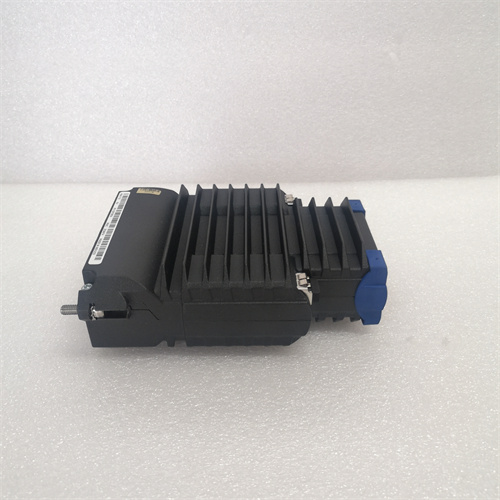

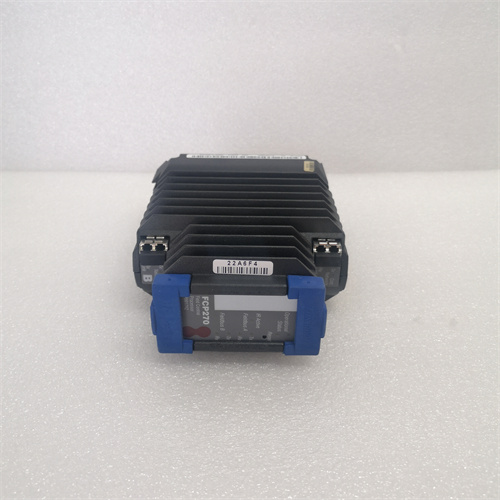

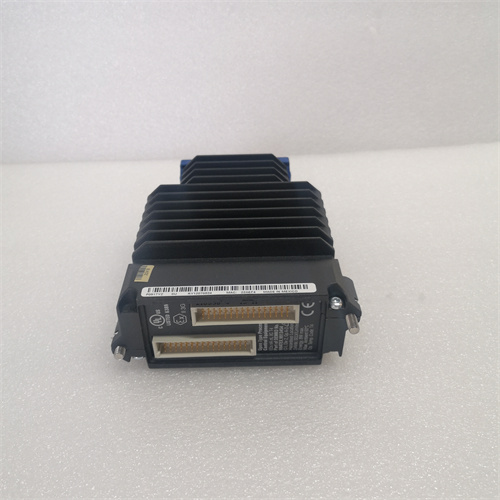

FCP270

Description

trait
Fault-tolerant mechanism: With a unique patented fault-tolerant operation, two control modules are used to improve system reliability.
Communication capability: Connect to the grid control network via standard fiber 100 Mbps Ethernet, supporting 2 Mbps or 268 Kbps HDLC fieldbus.
Control functions: Perform regulation, logic, timing, and sequence control in combination with Fieldbus modules (FBMs), supporting up to 32 200 series FBMS and more via extension modules.
Data acquisition and alert: Perform data acquisition, alarm detection and notification.
Time synchronization: Support for time synchronization using optional external time from GPS satellites.
Physical properties: Robust die-cast aluminum housing for field installation.

Parameters and specifications
Memory size: 16 MB SDRAM and 32 MB flash.
Input voltage: 24 V DC typical value.
Power consumption: Maximum 8.5W per non-fault-tolerant module.
Operating temperature: 0 to +60 degrees Celsius (+32 to +140 degrees Fahrenheit).
System environment: can work in harsh G3 environment.
Configuration: Single-processor module, fault-tolerant by two processor modules, the substrate integrated into an interconnect fault-tolerant connector.
Size and weight
Dimensions: Length 14.7cm x width 5.15cm x height 11.4cm.
Weight: 0.6 kg (net), shipping weight 1.5 kg.
