Description

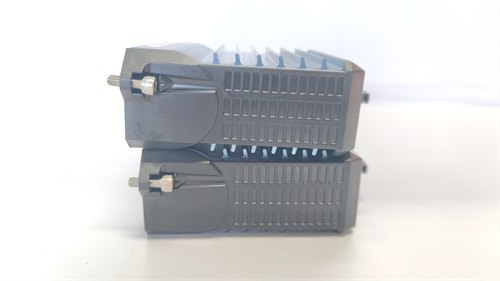

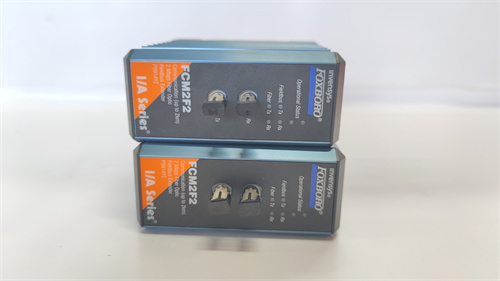

FCM2F2 P0914YZ

Product Parameters

• Power Supply:
  • Input Voltage: 24 VDC (nominal)
  • Voltage Range: 18 VDC to 32 VDC
  • Power Consumption: Approximately 10 W
• Communication Interfaces:
  • Ethernet: Supports 10/100 Mbps Ethernet for high-speed data transfer
  • Serial Interface: RS-485 for communication with certain field devices
• I/O Capacity:
  • Analog Inputs: 16 channels (configurable)
  • Analog Outputs: 8 channels (configurable)
  • Digital Inputs: 16 channels
  • Digital Outputs: 16 channels
• Compatibility:
  • Compatible with Foxboro I/A Series control systems
  • Can interface with a wide range of field devices from various manufacturers

Advantages and Characteristics

• High Reliability: In a chemical plant where the environment is harsh with high temperatures, humidity, and potential chemical interference, the FCM2F2 P0914YZ has been operating continuously for over 3 years without any major failures. Its robust design and high-quality components ensure stable performance even in such challenging conditions.
• Flexible Configuration: The module allows for easy configuration of its I/O channels. For example, users can configure the analog input channels to accept different types of signals, such as 4-20 mA or 0-10 V, depending on the requirements of the field devices. This flexibility reduces the need for additional hardware and simplifies the overall system design.
• Efficient Data Processing: With its powerful processing capabilities, the FCM2F2 P0914YZ can quickly process large amounts of data from multiple field devices. In a manufacturing plant, it can handle real-time data from sensors monitoring various production parameters, and execute control algorithms to adjust the production process accordingly, improving production efficiency by up to 20%.

Application Areas and Application Cases

• Applicable Industries and Scenarios: The FCM2F2 P0914YZ is suitable for a wide range of industries, including manufacturing, energy, chemical, and water treatment. In manufacturing, it can be used for production line control, quality monitoring, and equipment management. In the energy industry, it can be applied to power generation and distribution systems for real-time monitoring and control. In the chemical industry, it helps in controlling chemical processes and ensuring safety. In water treatment plants, it can be used to monitor and control water quality and treatment processes.
• Application Case: In a large-scale manufacturing plant, the FCM2F2 P0914YZ was installed to control the production line. It interfaced with various sensors, such as temperature sensors, pressure sensors, and position sensors, to monitor the production process in real-time. Based on the data received from these sensors, the module executed control algorithms to adjust the speed of the conveyor belts, the operation of the robotic arms, and the feeding of raw materials. As a result, the production line became more efficient, with a significant reduction in production errors and an increase in overall productivity.

Comparison with Similar Products

Selection Suggestions

• Compatibility: When selecting the FCM2F2 P0914YZ, ensure that it is compatible with your existing control system. Check the communication protocols and interfaces to ensure seamless integration. If you are using other Foxboro I/A Series components, this module is likely to be a good fit.
• Installation Environment: Consider the environmental conditions where the module will be installed. If it is in a harsh environment with high temperatures, humidity, or electromagnetic interference, ensure that the module has the necessary protection and can operate reliably.
• Budget: While the FCM2F2 P0914YZ offers high performance and reliability, it is important to consider your budget. Compare the cost of this module with other similar products in the market and evaluate the overall cost-effectiveness based on your specific requirements.

Precautions

• Safety Regulations: When installing and using the FCM2F2 P0914YZ, follow all relevant safety regulations. Ensure proper grounding of the module to prevent electrical hazards. Do not touch the module’s internal components while it is powered on.
• Maintenance Suggestions: Regularly check the module’s operation status, including the power supply, communication, and I/O channels. Clean the module regularly to prevent dust accumulation, which can affect its performance. If any faults are detected, refer to the user manual or contact the manufacturer’s technical support for troubleshooting and repair.
