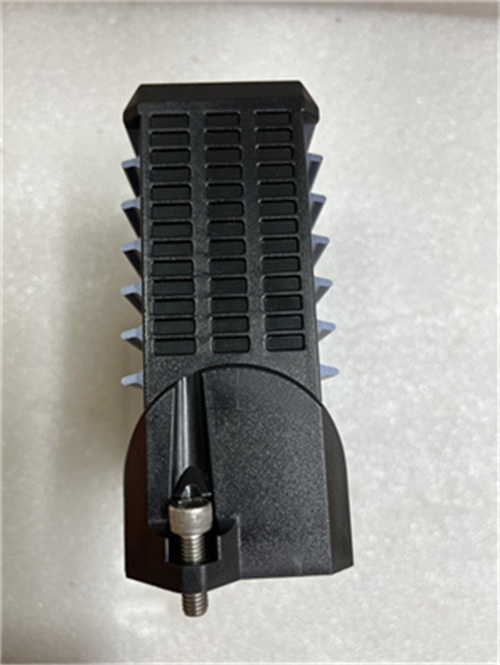

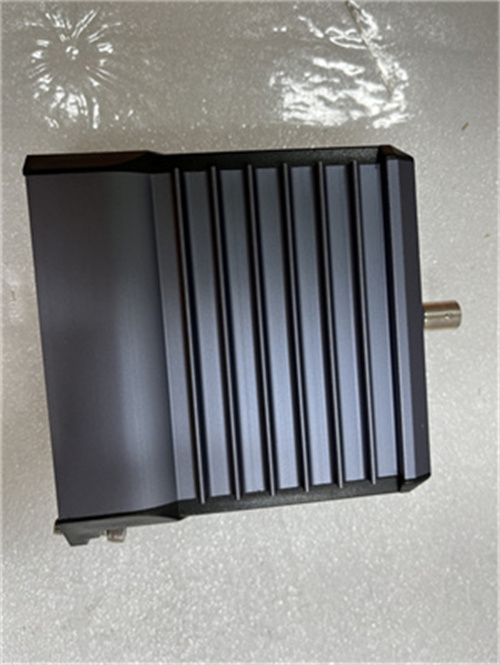

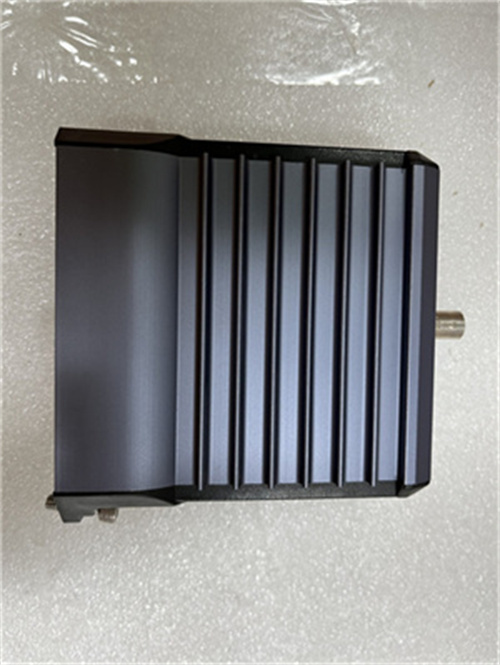

FCM10E

Description

‌ Features ‌ :

‌ Compact and rugged ‌ : suitable for harsh environments, in accordance with ISA standard S71.046.
‌ easy to install and configure ‌ : Supports multiple fieldbus protocols for easy system integration6.
‌ Supports redundancy ‌ : Each module can support up to 30 field input/output modules (FBMS), improving system reliability 6.
‌ Front-end status indicator ‌ : Equipped with a light emitting diode (LED) to indicate the status of network activity and operation

‌ Parameters and specifications ‌ :

‌ operating voltage ‌ : Some sources mention that its operating voltage may be 260V1, but it is also said that its voltage range is suitable for a wider range of control systems, such as 24V DC-2. Please note that the specific operating voltage may vary depending on the application environment.
‌ Output frequency ‌ : In a particular application, the output frequency may be 120kHz1, but this data may vary depending on the module configuration and use case.
‌ program capacity ‌ : The data shows that the program capacity is 256kbyte3.
‌ Environment specification ‌ : Suitable temperature range -20 to +70°C, storage temperature range -40 to +70°C, relative humidity of 5 to 95% (non-condensing)

‌ Dimensions and weight ‌ :

‌ size ‌ : The size of FCM10E may be different according to different materials. One says it has an overall dimension of 132mm105mm52mm4, while another gives a more detailed dimension, including a height of 102 mm (including mounting lugs), a width of 45 mm, and a depth of 104 mm
