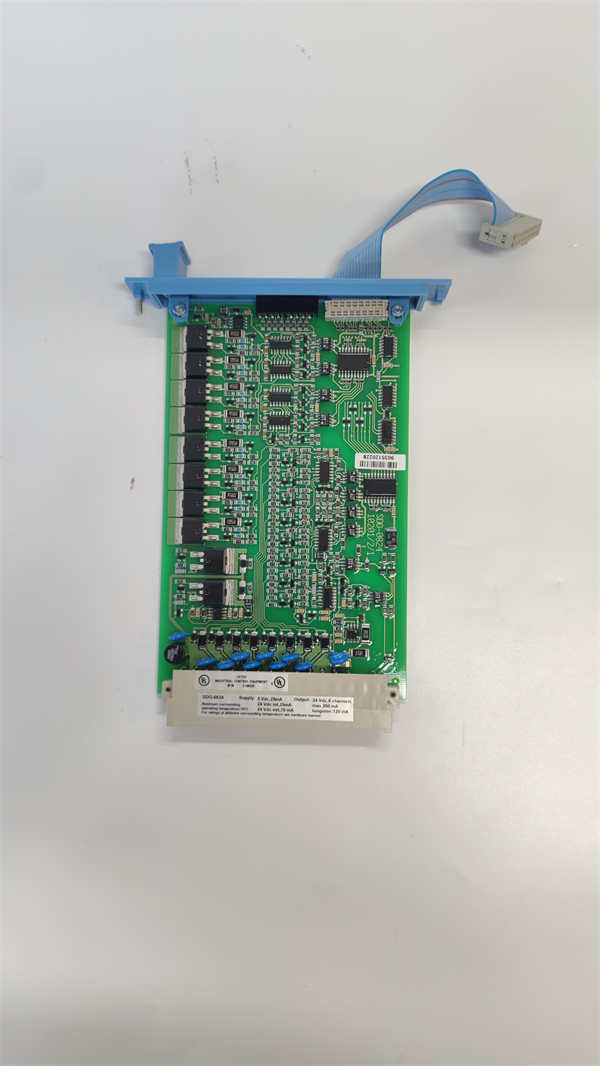

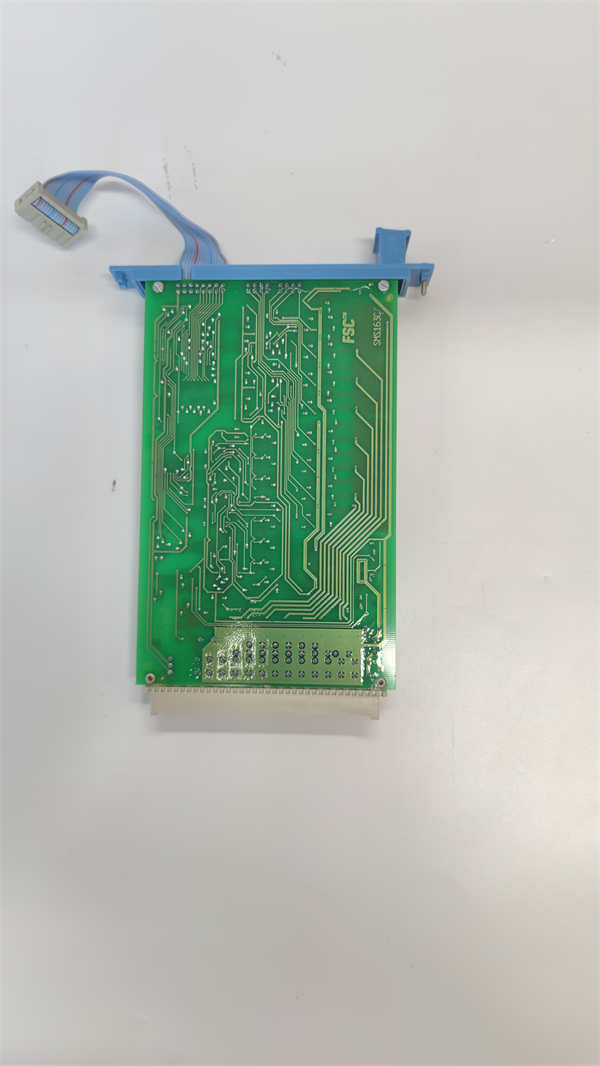

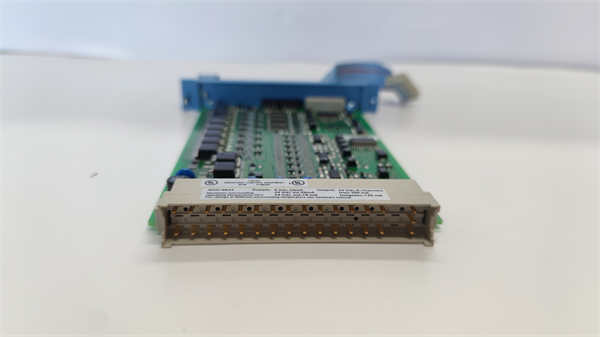

FC-SDO-0824 V1.3

Description

Parameters and specifications
Model: FC-SDO-0824 V1.3
Brand: Honeywell
Input voltage: 24VDC
Output voltage: 24VDC
Output current: 0.5A/ channel
Digitized output: 24 channels (however, please note that this contradicts the 8 channels mentioned in the search results [2] and may require further confirmation)
Communication interface: RS-485
Operating temperature: -20℃~70℃
Storage temperature: -40℃~85℃
Size and weight
Dimensions: 120mm x 75mm x 43mm
Weight: 300g
series
The FC-SDO-0824 V1.3 is not specifically classified as a “family,” but as a product model within the Honeywell Industrial Automation product line.

trait
Multi-channel output: There are eight (or possibly more, as shown in the search results [3]) independent digital output channels, each of which can be controlled independently.
High voltage and high current output: Designed for a 24VDC voltage class, each channel can provide up to 550mA of current output.
Built-in watchdog timer: ensures system stability and reliability, and automatically resets output if a valid signal is not received within a certain period of time.
Extensive compatibility: Compatible with a variety of Honeywell Safety controllers, such as the Safety Manager 4000, 5000 and 6000, as well as support for other third-party safety controllers.
Rugged: Rugged metal housing with NEMA 4X and IP66 protection grades.
Programmability: Allows users to configure the working mode, state and parameters of each output channel according to specific application requirements.
Real-time monitoring: A real-time monitoring function allows users to monitor the status and operation of each output channel.

effect
FC-SDO-0824 V1.3 is a high-performance digital output module commonly used in industrial automation systems to control and monitor digital devices or actuators. It allows the control system to send a digital signal to an external device to perform a specific operation or control.
