Description
Parameters and specifications:

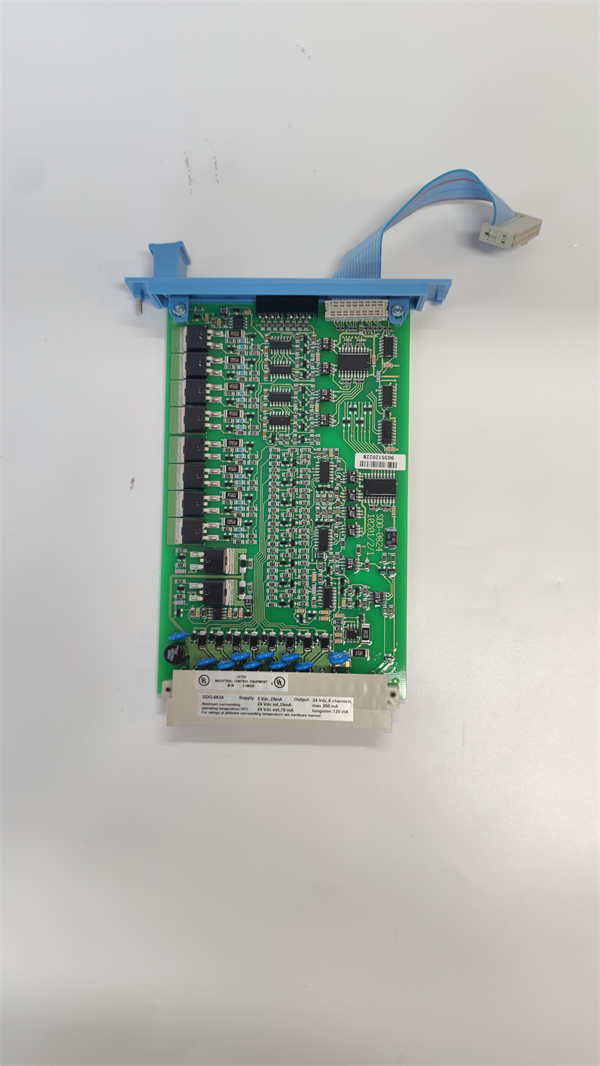

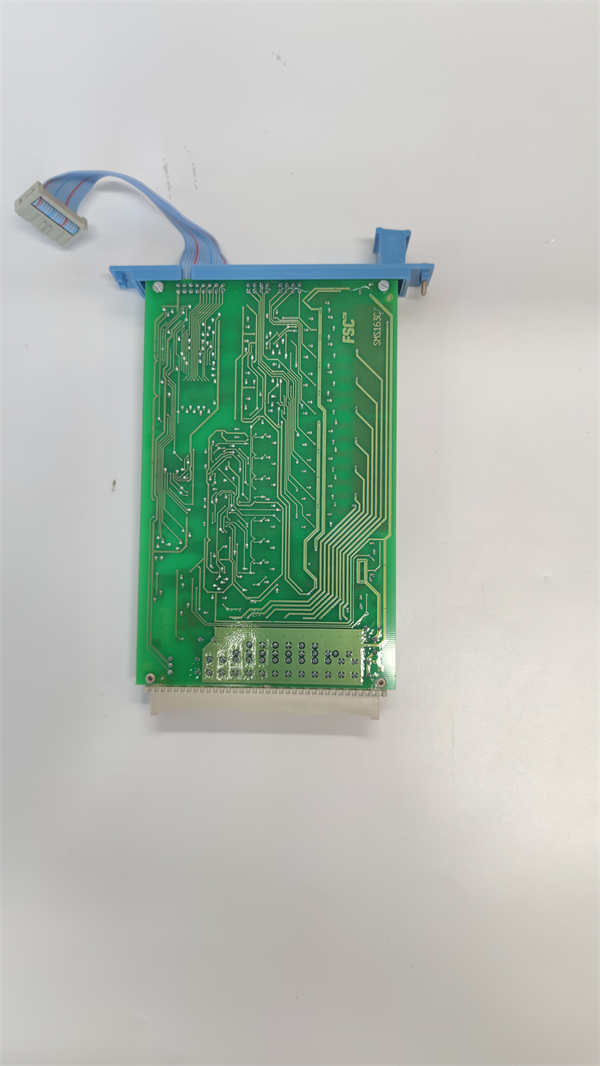

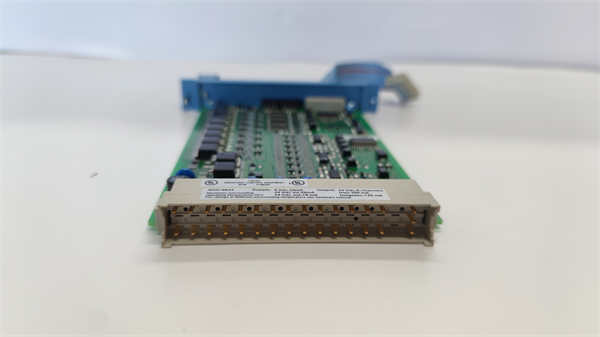

Model: FC-SDO-0824 V1.3
Brand: Honeywell
Input voltage: 24VDC
Output voltage: 24VDC
Output current: 0.5A/ channel (or 550mA/ channel)
Digital output: 8 channels (some information says 24 channels, but based on other information, this may be related to a specific application or configuration)
Communication interface: RS-485
Operating temperature: -20℃~70℃
Storage temperature: -40℃~85℃
Dimensions: 120mm x 75mm x 43mm
Mounting method: DIN rail mounting
Terminal specifications: 14-28AWG
Weight: 300g
Series:
The FC-SDO-0824 V1.3 is a specific Honeywell model that is not usually classified directly into a specific “family”, but as part of the Honeywell Industrial Automation product line.
Features:
Multi-channel output: with 8 independent digital output channels, each channel can be independently controlled.
High voltage and high current output: Designed for a 24VDC voltage class, each channel can provide up to 550mA of current output.
Built-in watchdog timer: to ensure the stability and reliability of the system, prevent the system from getting out of control.
Broad compatibility: Compatible with a wide range of Honeywell security controllers and support for other third-party security controllers.
Rugged: Rugged metal housing with NEMA 4X and IP66 protection grades.
Functions:
The FC-SDO-0824 V1.3 Digital output module is an important industrial automation device used to control and monitor digital devices or actuators. It allows the control system to send a digital signal to an external device to perform a specific operation or control. It is suitable for various industrial automation and control systems, such as manufacturing, chemical, energy and other fields.
