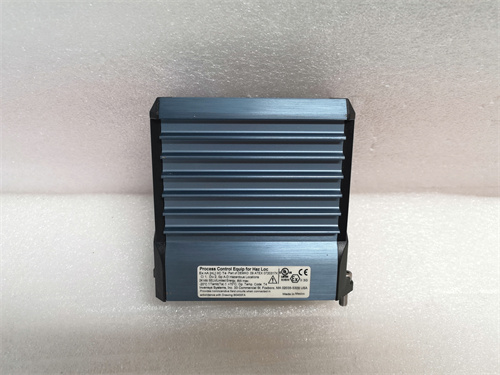

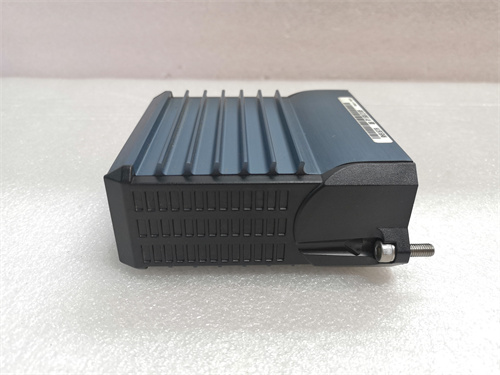

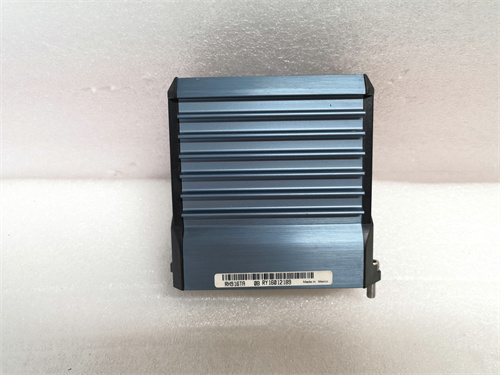

FBM242

Description

‌ Specifications ‌ :

The FBM242 is a discrete output module with 16 discrete output channels, all from external sources, supporting discrete output signals at a variety of voltages, including 15 to 60V DC, 120V AC /125V DC, and 240V AC.
The module is designed to be robust and suitable for enclosures in G3 (harsh) environments.
The FBM242 module supports ladder logic and provides fail-safe configuration options for output.
The associated terminal assembly (TA) can provide discrete outputs to a variety of loads, including loads with 2A 60V DC voltage, relay outputs (120V AC /125V DC or 240V AC), or relay outputs with distribution and fuses.

‌ Weight ‌ :

The weight of the FBM242 module is 0.284 kg (shipping weight is 2 kg), but please note that different sources may give different weight values, such as another source mentions that the weight of the FBM242 is 26kg, which may refer to the total weight including packaging or additional accessories.

‌ function ‌ :

The main role of the FBM242 module is to connect the electrical output signal of the control processor to the field device, perform digital I/O applications, support ladder logic, and provide fail-safe configuration options for the output.
It is widely used in industrial automation and control systems to realize the acquisition, control and monitoring of digital signals.

‌ parameter ‌ :

The FBM242 module has a rated current of up to 2A at 60V DC and a maximum load current of 2.25A per output channel.
The on-state voltage drop is 0.2V (maximum) at 2.25A, and the off state leakage current is 0.1mA (maximum).
The input voltage range is 24V DC +5%, -10%, and the power consumption is 3 watts at 24V DC (maximum).

‌ Size ‌ :

The dimensions (L x W x H) of the FBM242 module are 10.4 cm x 4.5 cm x 11.4 cm.
However, some sources mention that the FBM242 has a specification of 6626, which may refer to the dimensions of different models or configurations
