Description
Parameters and Specifications:
Input/Output Configuration: The FBM242 module provides 16 discrete output channels, each capable of supporting solid-state switch output signals. These channels are powered by an external source, with a voltage range of 15 to 60 VDC, 120 VAC/125 VDC, or 240 VAC.
Output Characteristics: Each output channel is electrically isolated from other channels and ground. The module also supports group isolation when used with external excitation.
Fuse and Current Limitation: Each channel has a fuse for protection, and the output current is limited to a maximum of 2A.
Surge Current Capability: The module can handle a surge current of up to 20A peak for a duration of 16 milliseconds.
Dimensions and Weight:
The exact dimensions and weight of the FOXBORO FBM242 module may vary depending on the specific model and configuration. It is recommended to refer to the manufacturer’s official documentation or contact the supplier for accurate measurements.
Features:
Compact Design: The module is designed with a narrower profile than standard 200 series FBMs, making it suitable for space-constrained applications.
Robust Construction: It features a durable acrylonitrile butadiene styrene (ABS) housing that provides physical protection to the circuitry.

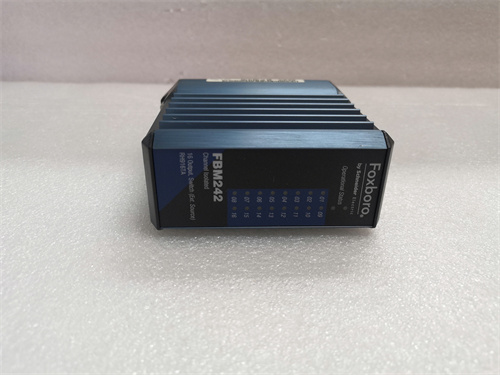

Visual Indicators: LED indicators on the module’s front panel provide visual feedback on the module’s operational status and the discrete status of each output point.
