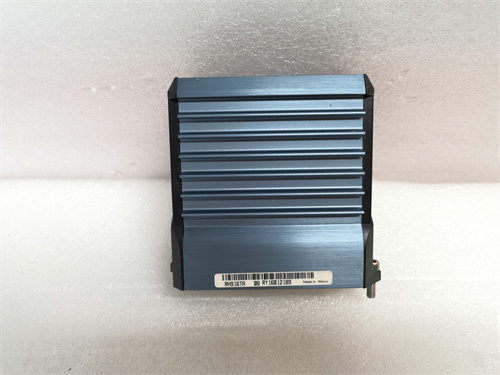

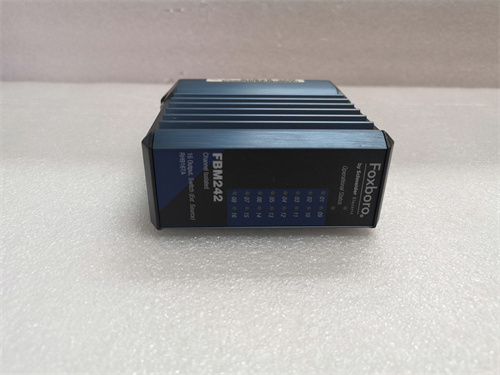

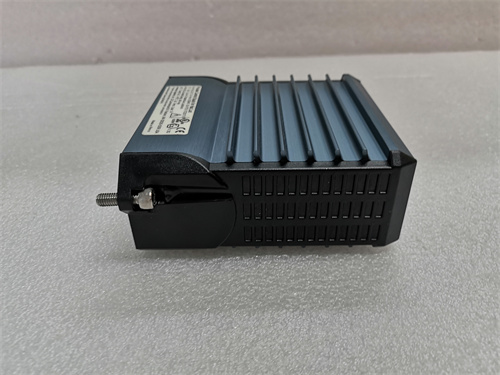

Description
Parameters and specifications:
Signal output: The FBM242 provides 16-channel external source solid-state switching output with channel isolation, provided by the terminating assembly.
Rated voltage and current:
AC load: Inductive load up to 2A or 20mH at 132V AC (without suppressor).
DC load: Inductive load up to 2A or 50mH at 150V DC (no suppressor).
Surge current: 20A peak, duration is 16 milliseconds.
Leakage current: less than 1mA.
On-resistance: less than 100 milliohm at 20°C.
Heat dissipation: Maximum 7.0W.
Fuse: 5 x 20mm, rated 3.15A (temperature reduced to maximum 2A).
End cable connection: 37 pin male head D-subminiature.
End cable Type: Type 4.
Color: Dark blue, representing discrete type.
Power requirements: Input voltage range (redundancy) 24V dc +5%, -10%, 3W (Max.) for 24V dc consumption, 3W (Max.) for 24V dc heat dissipation.
Size and weight:
Dimensions: Length x width x height 10.4 cm x 4.5 cm x 11.4 cm.
Weight: 0.284 kg.
Series:
The FBM242 is part of FOXBORO’s product family and may be part of its I/A series or Compact 200 series I/O subsystems.
Features:
Combined legs: Support 32 or 35mm DIN rail mounting.
Multiple integrated marking systems: with different family group colors.
Normally open, solid-state switch output: active output fuse protection per channel, with bi-directional blown fuse indication (DC polarity independent).
Electrical isolation: each output is electrically isolated; Group isolation when used with external incentives.
Compact and rugged: Suitable for cabinets in G3 (harsh) environments
Execute discrete I/O or ladder logic programs: Options such as input filtering time, fail-safe configuration, fail-safe rollback, continuous or instantaneous output can be configured.
Visual indicator: The front end of the module is equipped with light-emitting diodes (leds), which can visually display the operating status of the module and the discrete status of each output point.
Functions:
The FBM242 module is one of the key components used in industrial automation systems to connect field equipment and control systems. It receives electrical output signals from the control processor and connects them to field devices, performs digital I/O applications, supports ladder logic, and provides fail-safe configuration options for the output.
