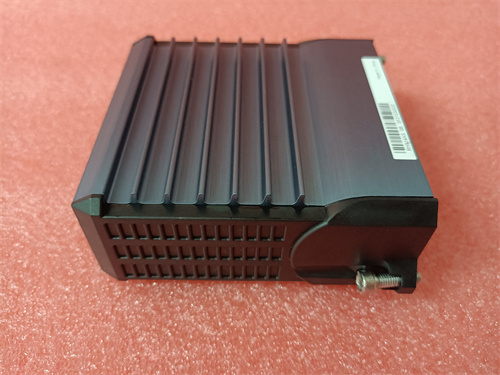

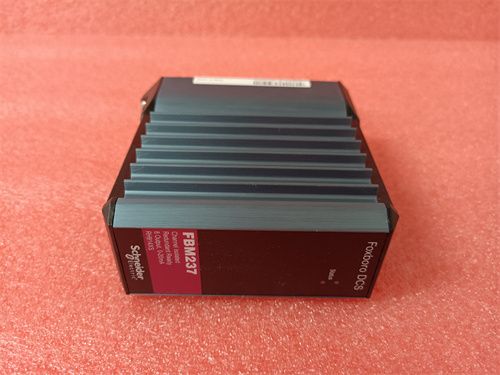

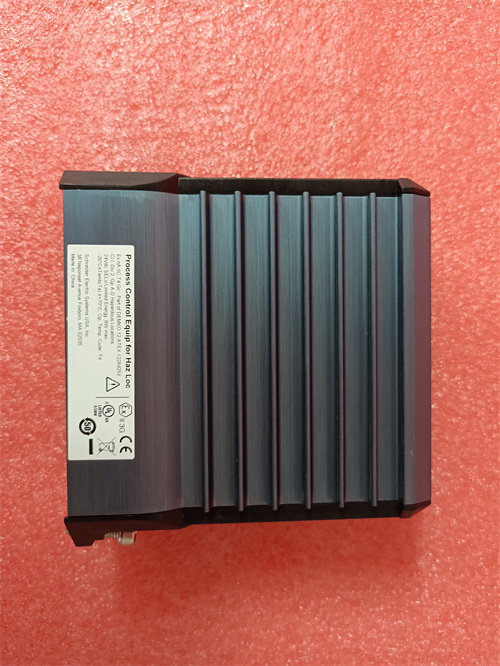

FBM237

Description

Parameter Specifications

1. Power Supply
   The FBM237 typically operates on a 24V DC power supply. The power consumption is around 8 – 12W, designed for energy – efficient operation in industrial settings.
2. Input/Output Channels
   • Analog Inputs: It is equipped with 8 analog input channels. These channels can accept a wide range of analog signals, such as 0 – 10V DC or 4 – 20mA. This makes it suitable for connecting to various types of sensors, including temperature sensors, pressure sensors, and flow sensors.
   • Resolution and Accuracy: The analog – to – digital conversion resolution is 16 – bit, providing high – precision measurement. The measurement accuracy is within ±0.1% of the full – scale range, ensuring reliable data acquisition.
3. Communication Interface
   The FBM237 supports communication with the main control system through a dedicated fieldbus interface. It can communicate at a high speed, enabling real – time data transfer to the control system for further processing and decision – making.
4. Isolation
   It features electrical isolation between the input channels and the power supply, as well as between different input channels. This isolation helps prevent electrical interference and protects the module and connected equipment from damage.

Uses

1. Industrial Process Monitoring
   In manufacturing plants, the FBM237 is used to monitor various process variables. For example, in a chemical plant, it can measure the temperature, pressure, and flow rate of raw materials and products. By continuously monitoring these variables, operators can ensure the quality and stability of the production process.
2. Power Generation
   In power plants, the FBM237 can be used to monitor electrical parameters such as voltage, current, and power. It can also monitor the temperature and pressure of steam and cooling water in the power generation process. This information is crucial for the safe and efficient operation of the power plant.
3. Environmental Monitoring
   In environmental monitoring applications, the FBM237 can be connected to sensors that measure air quality, water quality, and other environmental parameters. It can collect and transmit data to a central monitoring system for analysis and reporting.

Weight and Dimensions

1. Weight
   The FBM237 weighs approximately 0.8 – 1.2 kg, which is relatively light, facilitating easy installation and handling.
2. Dimensions
   It has a compact design with dimensions around 150mm (length) x 120mm (width) x 50mm (height). This allows it to be easily installed in standard control cabinets or on DIN rails.

Characteristics

1. High – Precision Measurement
   With its 16 – bit resolution and high accuracy, the FBM237 can provide precise analog – signal measurements, which is crucial for accurate process control and monitoring.
2. Flexible Signal Input
   The ability to accept different types of analog signals (0 – 10V DC or 4 – 20mA) makes it adaptable to different types of sensors, increasing its versatility in various industrial applications.
3. Reliable Communication
   The dedicated fieldbus interface ensures reliable and high – speed communication with the main control system, enabling real – time data transfer and control.

Stability and Reliability

1. Robust Construction
   The FBM237 has a durable housing and high – quality electronic components, enabling it to withstand harsh industrial environments, including high levels of vibration, dust, and temperature variations.
2. Electrical Isolation
   The electrical isolation between input channels and the power supply enhances the stability and reliability of the module, reducing the risk of electrical interference and damage.
3. Long – Term Testing
   The module has undergone extensive long – term testing under various operating conditions to ensure its stability and reliability over an extended service life.

Actual Cases

1. Chemical Plant Process Control
   In a chemical plant, the FBM237 was used to monitor the temperature and pressure of a reactor. By continuously measuring these parameters, operators could detect any abnormal changes in real – time. This early detection allowed them to take corrective actions promptly, preventing potential accidents and ensuring the quality of the chemical products.
2. Power Plant Boiler Monitoring
   In a power plant, the FBM237 was installed to monitor the steam temperature and pressure in the boiler. The precise measurements provided by the FBM237 helped the operators optimize the boiler operation, improving the energy efficiency of the power plant and reducing the risk of equipment failure.
