Description
Parameters and specifications:
Number of channels: The FBM237 has eight 20mA dc analog output channels.
Output range (per channel) : 0-20.4mA dc.
Output load: Maximum 750Ω.
Power requirements: Input voltage range is 24V dc +5%, -10%.
Power consumption: 7W (Max).
Heat dissipation: 3.5W (Max).
Vibration: 0.75g (5 to 200Hz).
Communication: Communicates with the corresponding FCM via the component fieldbus. Fieldbus communication Communication with the control station is via an optional redundant 10Mbps Ethernet fieldbus.
Fail-safe configuration: fail-safe return data (on a per-channel basis) with hold/return function and analog output.
Data conversion: Each channel uses Sigma-Delta data conversion and is scanned every 25 milliseconds.
Features:
Isolation design: Electrical isolation between channels and channels to the ground.
Compact design: Strong pressed aluminum housing provides physical protection for electronic circuits.

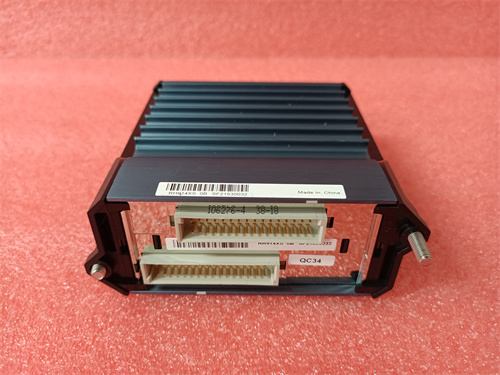

Easy installation and maintenance: can be mounted on DIN mounted substrate, which can be mounted on DIN rail or rack, and supports redundant fieldbus sockets, separate DC sockets, and I/O cable sockets.
Remote operation: You can restart by remote operation.
Functions:
The FBM237 performs an analog signal output application as part of an industrial automation system, providing signal conversion from an electrical signal from a field sensor to an optional redundant fieldbus signal.
In industrial environments, it is used to drive external loads and generate output signals from 0 to 20mA, providing reliable data transmission and control support for industrial automation systems.
